Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 413

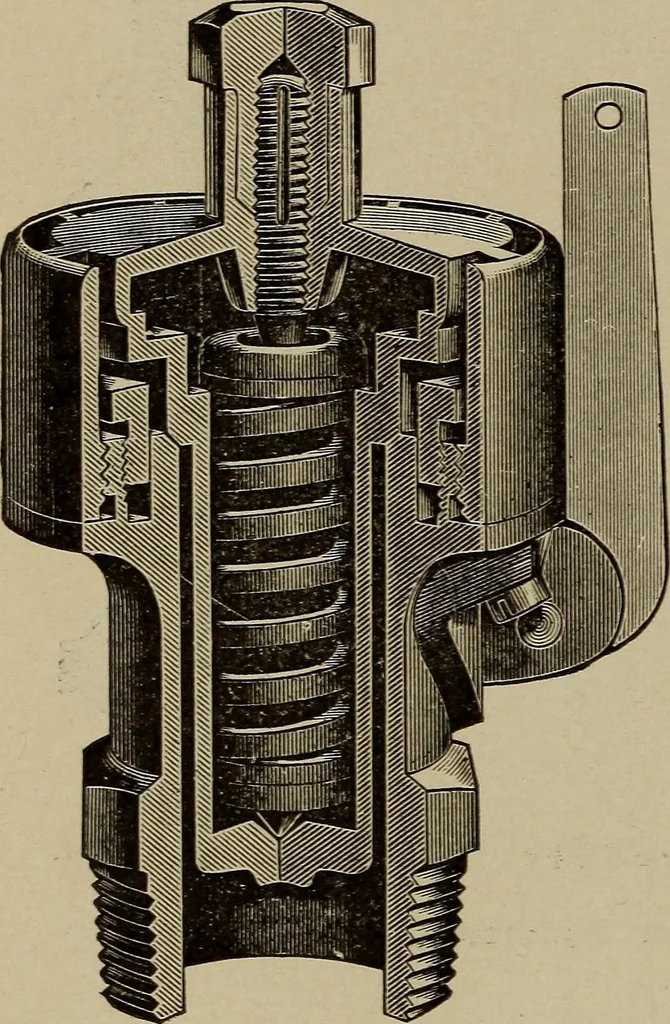

described. The Nathan New BullsEye Lubricator. Fig. 196.Ge?ieral Features. Theoil reservoir of the lubri-cator is of cylindrical form, which is generally ac-knowledged to be most suitable for high pressure. The lubricator is provided with hand oilers for thecylinder feeds, and with gauge glasses… … Figure 194 Kunkle Pop Valvefor portable and stationary BOILERS INJECTORS, STEAM GAUGES, ETC. 405 the body, making their removal for inspection orrepairs very convenient. Directions for Application. 1. Secure the lubricatorto boiler head or top of boiler, in the usual manner. 2. Connect for steam to…
Locomotives
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
