Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 24

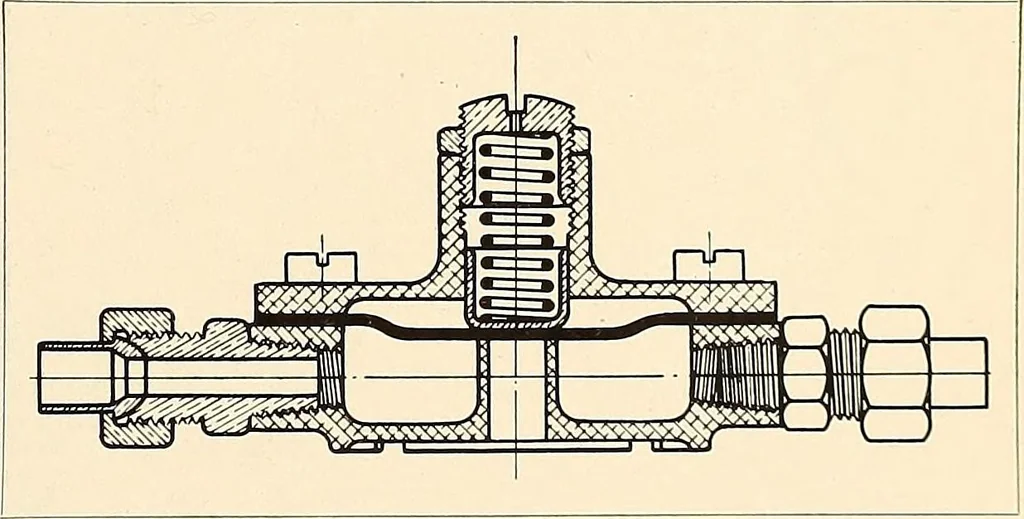

de. Fuel Pump Model E-2 On model E-2 provisions have been made for attach-ing a Fuel Pump. This is attached directly to the bottomof the magneto bracket, taking its drive from a short ver-tical shaft and another bevel gear meshing with the mag-neto driving gear. Air Pressure Relief Valve The Air… … Tachometer drive connector Air pressure relief valve shown in cut consists of a leather plunger diaphram withthe air under pressure on one side of the diaphram beingbalanced by a spring on the other side of diaphram. Thespring is adjusted by small plug to desired pressure andlocked by nut to…
