Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 426

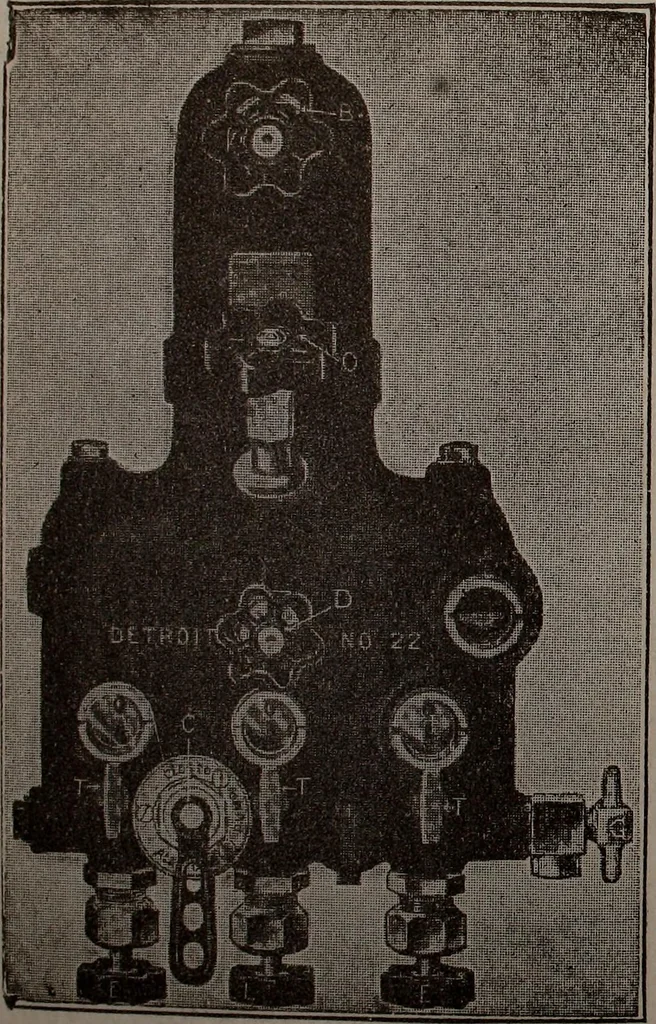

Figure 203Detroit Xo. 21, Side View such case close valves C and F belonging to the brokenglass and use the auxiliary oiler O on that glass ondown grades, as a common cab oiler. The breaking of one glass does not interfere withthe proper function of the others. 2. Always open the steam valve before… … F—Condenser.. A—Oil Reservoir.. O—Filler Plug. G—Drain Valve. TTT—Sight Feed Drain Stems; D-Water Feed Valve. B—Steam Valve. C—Oil Control Valve. EE—Feed Regulating Valves to Right and Left Hand Cylinders.L—Feed Regulating Valve to Air Pump. WW—Coupling to Right and Left Hand Cylinders.R—Coupling…
Locomotives
