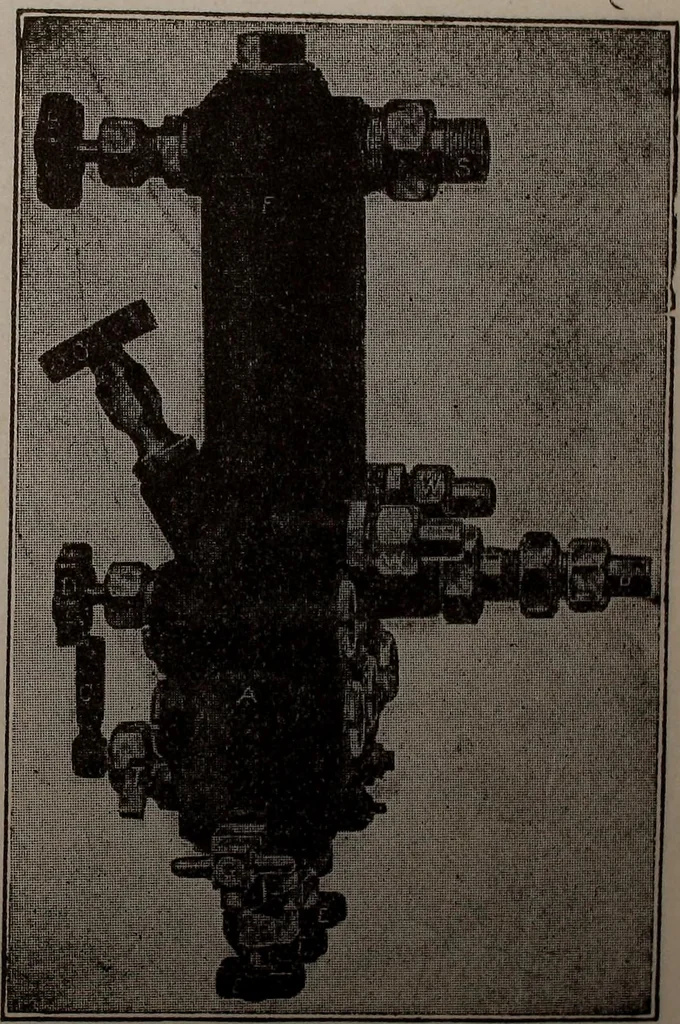

F—Condenser.. A—Oil Reservoir.. O—Filler Plug. G—Drain Valve. TTT—Sight Feed Drain Stems; D-Water Feed Valve. B—Steam Valve. C—Oil Control Valve. EE—Feed Regulating Valves to Right and Left Hand Cylinders.L—Feed Regulating Valve to Air Pump. WW—Coupling to Right and Left Hand Cylinders.R—Coupling… … Fig. 203a. Detroit No. 22 Triple Feed Locomotive Lubricator with Automatic Steam Chest Plugs. I —% «fi liO~A ■ • < I . INJECTORS, STEAM GAUGES, ETC. 415 begins to do any work whatever—whether the feed isj started right away or not, and keep it open as long asthe engine is doing service of any…
