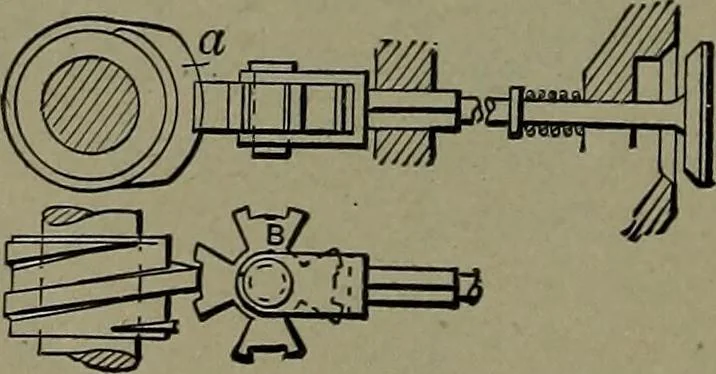

ing the pushrod in the cross grooves, also for single-valve rod throwfor four-cycle gas engine. 438. VALVE GEAR for a four-cycle gasengine. The two-thread worm on the en-gine shaft has the middle part of the threadextended to form a cam. The four-partgear, B, revolves by the action of the worm,and… … 439. PLUMB-BOB GOVERNOR for agas engine. The plumb-bob, A, is pivotedin a box attached to the exhaust valve pushrod. The back motion of the push rod pro-duces a forward motion of the bob, acting likea pendulum, and a downward motion of thepick blade, C, bringing it in contact with the valve…
