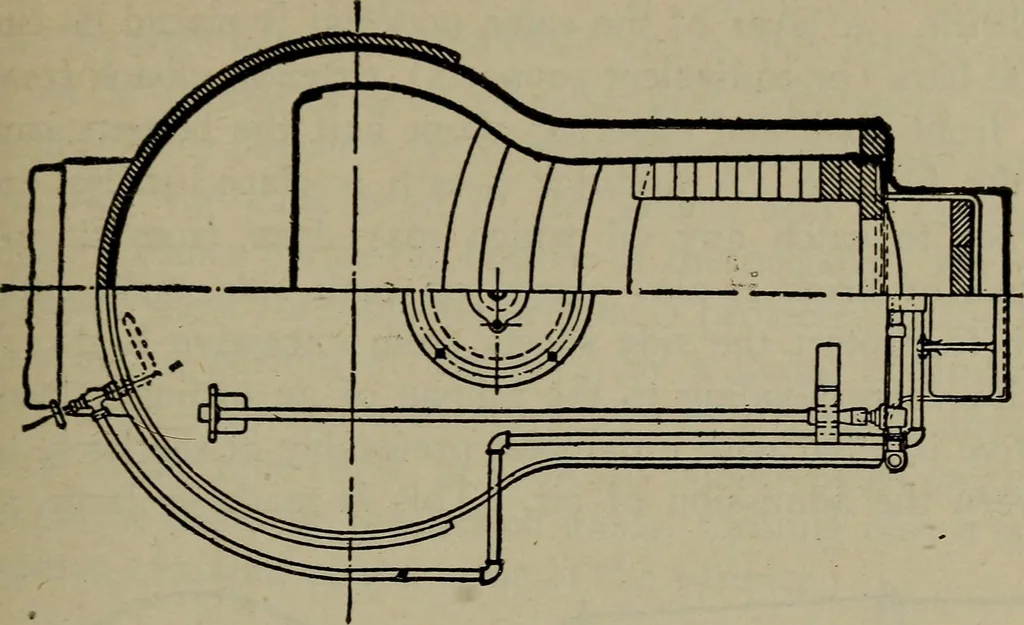

23k. Lassoe-Lovekin Oil-Burner.Dispenses with Brick Arch- Oil Supplied Under Pressure. The general arrangement of the firebox as adopted bythe Baldwin Locomotive Works, is illustrated in Fig. 223 1,The burner is placed below the mud ring at the backand on a line with the center of the boiler, and… … O a ooo •a •—< « o
