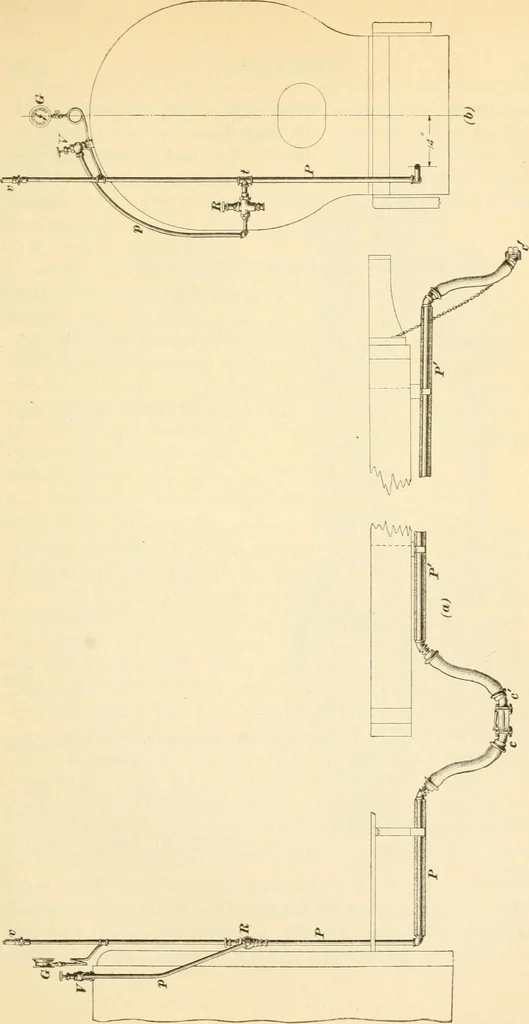

inthe systems already described, except that in one of those aboutto be described, the steam mixes directly with the circulatingwater. ENGINE EQUIPMENT. 78. Fig. 27 shows the arrangement of the engine equip-ment, (a) being a side view, (6) an end view of the engine.Steam is taken from the boiler at… … 64 CAR HEATING. § 13 and tender, and thence along pipe P to the train. Thefitting t allows the steam to pass to the pressure gauge Gand relief valve v. The coupler c at rear of engine is theSewall lever coupler, the couplers c, c at each end of thetender being standard Sewall couplers. STOP-VAI.VE:…
