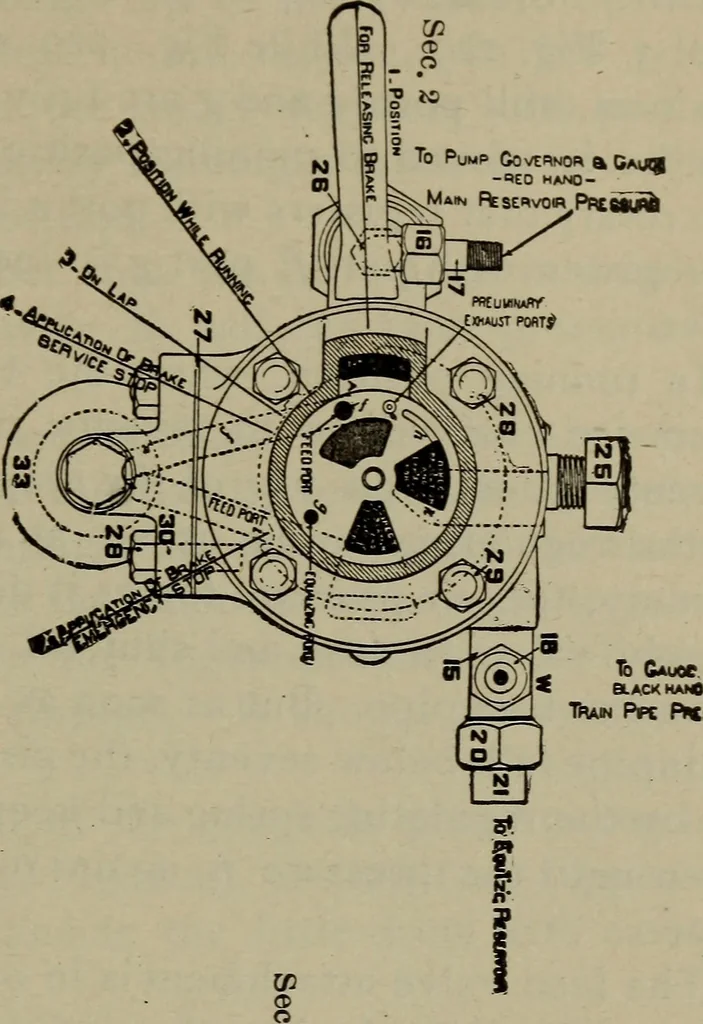

Fig. 230), andthrough port fin the rotaryseat(Sec. 3, Fig.229), through apassage (/), andunder the sup-ply valve to thetop of the dia-phragm piston,then through aport (shown bydotted lines,and marked i%Sec. 2, Fig.230), whichleads off the topof the piston into the trainpipe by way of the mainsupply…
