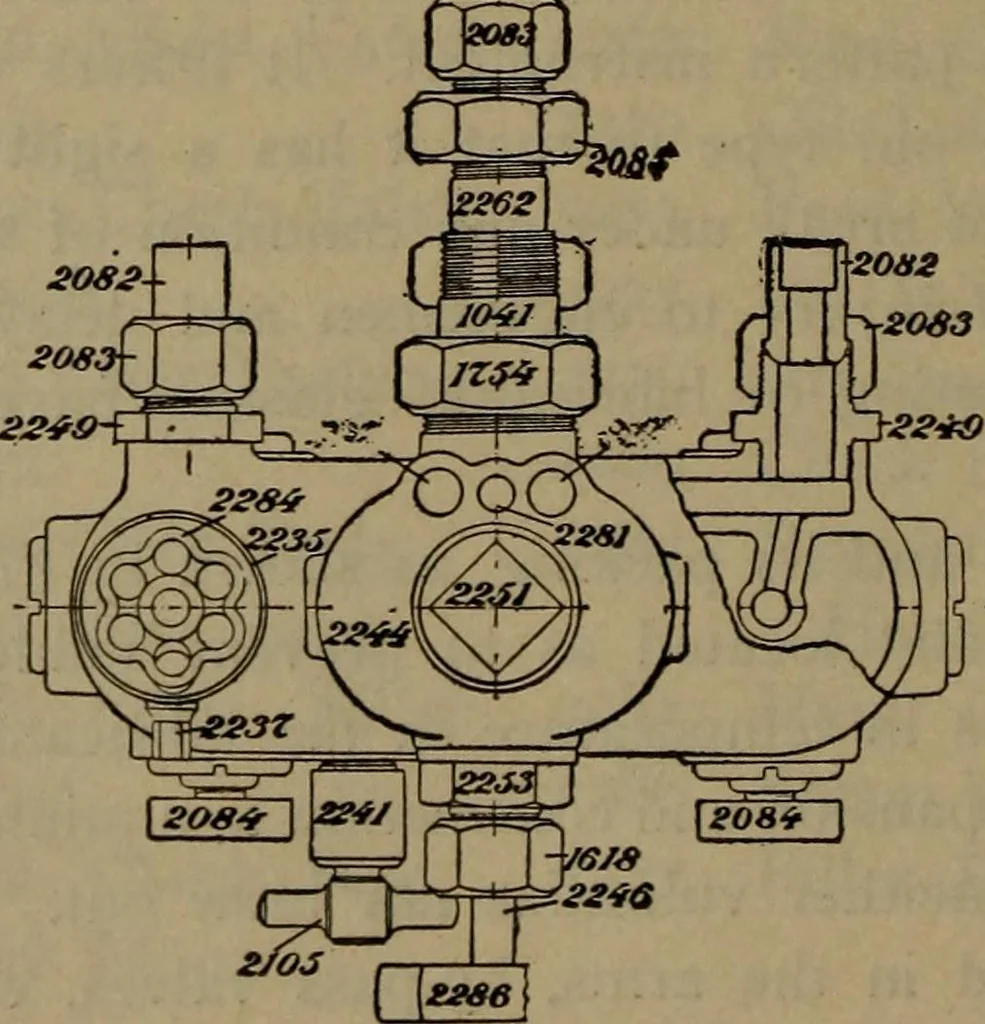

al valve is placed on the top of the lubri-cator to control the supply of steam from the boiler, mak-ing the device self-regulating. List of Operating Parts. F. Condenser L. Feed Regulating A. Oil Reservoir Valve to Air- 0. Filler Plug Pump G. Drain Valve WW. Couplings to Right TTT. Sight Feed… … PLATE 37. LOCOMOTIVE LUBRICATORS. 139 Operation. To fill the lubricator filler plug O, Plate36, should be removed and the reservoir filled with cleanstrained valve oil. If there is insufficient oil to fill thereservoir, add enough water to make up the requiredquantity. This will enable the feeds to…
