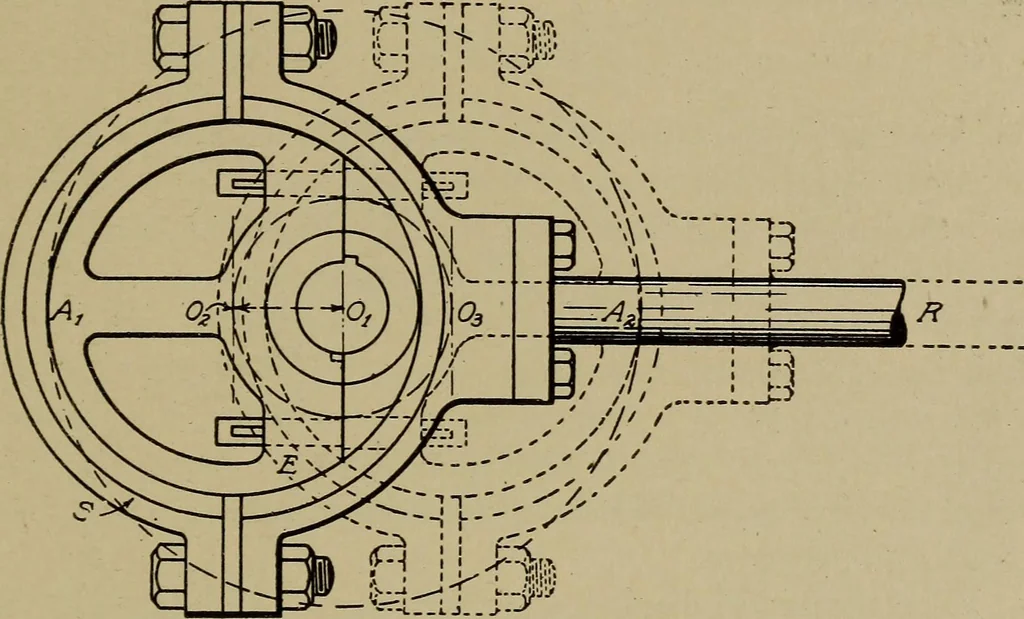

nary eccentric. Oi isthe center of the shaft, 02 is the center of the eccentric disk E, andS is a collar encircling the eccentric and attached to the valve rod R.As the eccentric turns in the strap, the point 02 moves in the dottedcircle around Oi and the point Ai also moves in a circle. When halfa… … 3/ ! i R 3 // L.-d ---- -7 /,- Fig. 2. Details of Ordinary Eccentric center of the eccentric from the center of the shaft is known as theeccentricity, or throw, of the eccentric. The travel of the valve istwice the eccentricity. Since the eccentric transmits the motion of the revolving shaftto the…
