Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 585

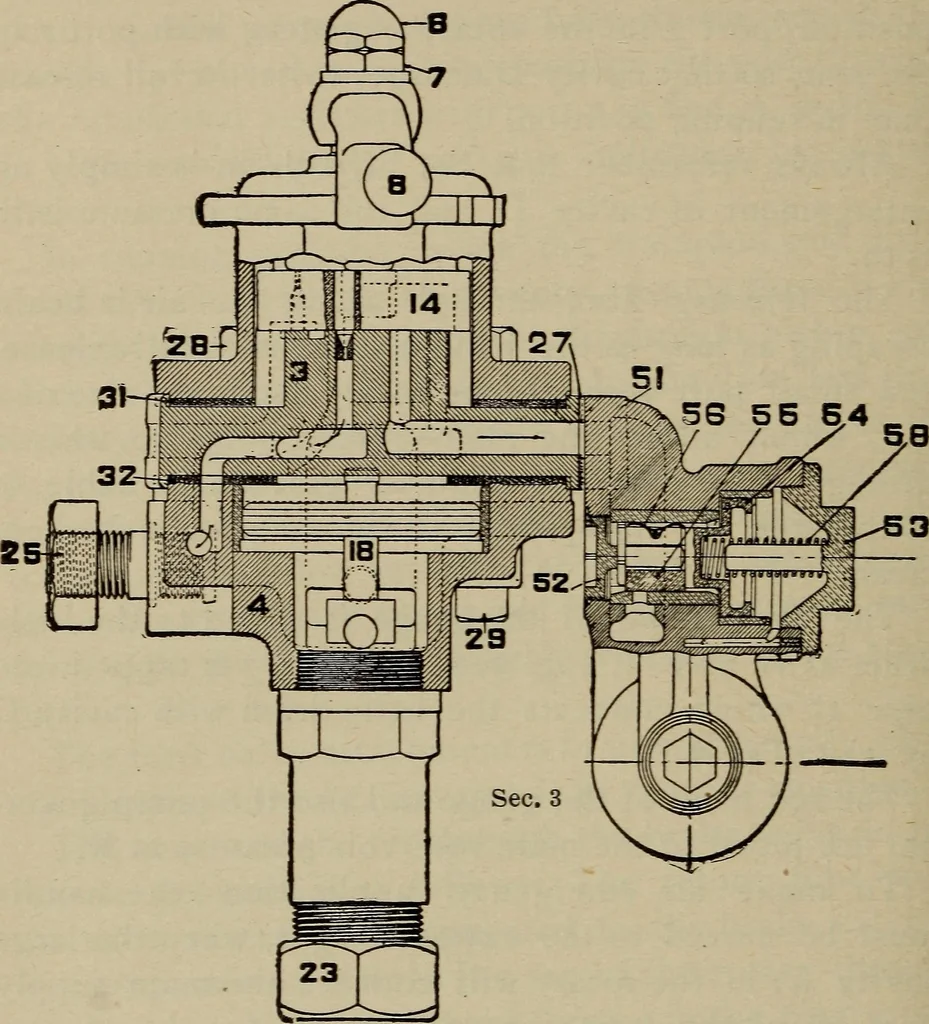

n the rotary will connect the main supplyport (/) of the trainpipe with the main exhaust port(k), and allow the air in the trainpipe to exhaustdirectly into the atmosphere, BRAKE VALVE AND NEW SLIDE VALVE FEED VALVE The G-6 brake valve is identical with the F-6, with 542 LOCOMOTIVE ENGINEERING the… … Figure 231G-6 Brake Valve to be raised much quicker than it can be with theold style feed valve. The working parts of the new slide valve feed valveare as follows: all of the essential parts of the old
Locomotives
