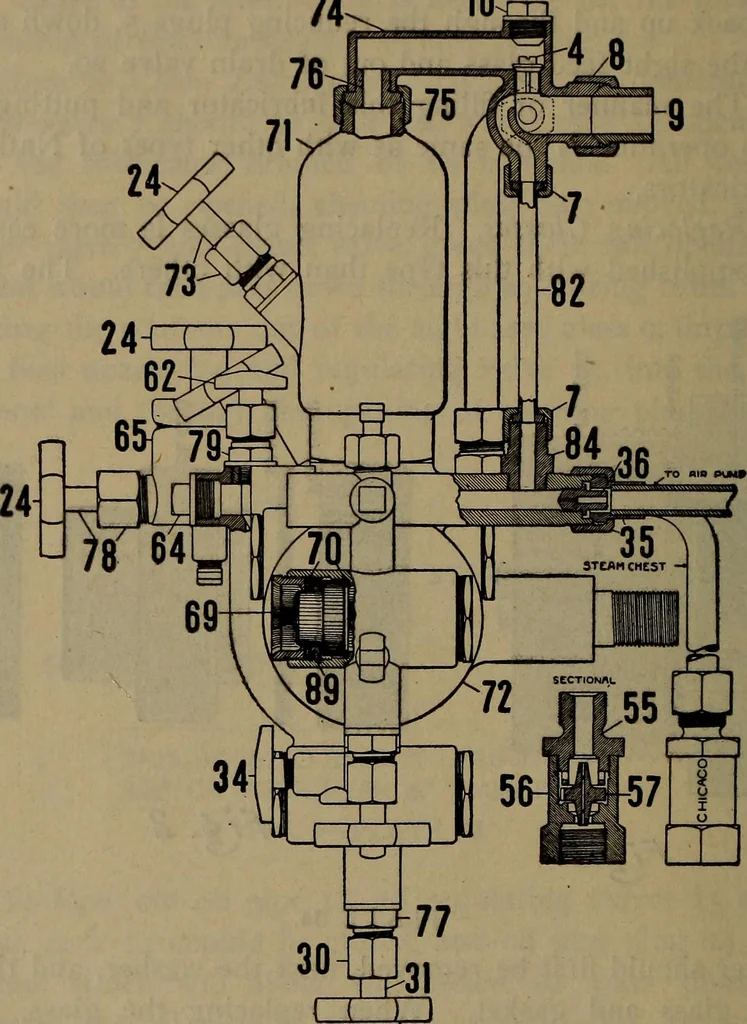

thegasket should first be put in place, then the glass, andnext the washer and the follower.. Fig. 1, Plate 34, shows a reserve glass packed in itscasing ready for use when required. If a glass breaksthe old casing should be removed and replaced by theextra one. After slightly tightening up the… … W FIG. 1—PLATE 35. THE CHICAGO THREE-FEED LUBRICA-TOR, BULLS EYE TYPE. List of Parts. 4. Check-Valve 69. Packing Nut for 6. Pipe Union Nut for Glass Steam-Chest Circu- 70. Follower RingandWash-lating Pipe er for Solid Glasses LOCOMOTIVE LUBRICATORS. 133 7. Pipe Union Nut for 71. Air-Pump Circulat-…
