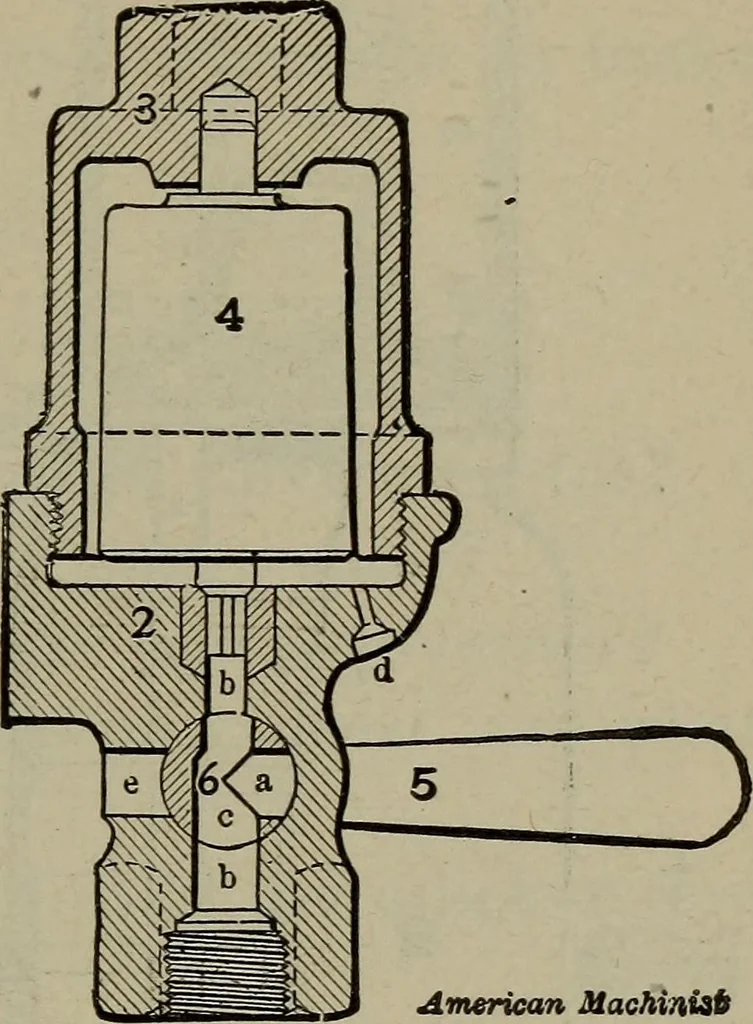

t a in reg-ister with the lower part of b, and port c is turned toregister with port e, and thereby allows all the air inthe brake cylinder to escape to the atmosphere. Therefore if the handle of the retainer is kept turneddown the engineer can release the brakes from theengine, but if the handle… … American Machinist X Figure 237Pressure-Retaining Valve s&> LOCOMOTIVE ENGINEERING
