Cyclopedia of textile work : a general reference library on cotton, woollen and worsted yarn manufacture, weaving, designing, chemistry and dyeing, finishing, knitting, and allied subjects (1907)
Chicago : American school of correspondence · leaf 319

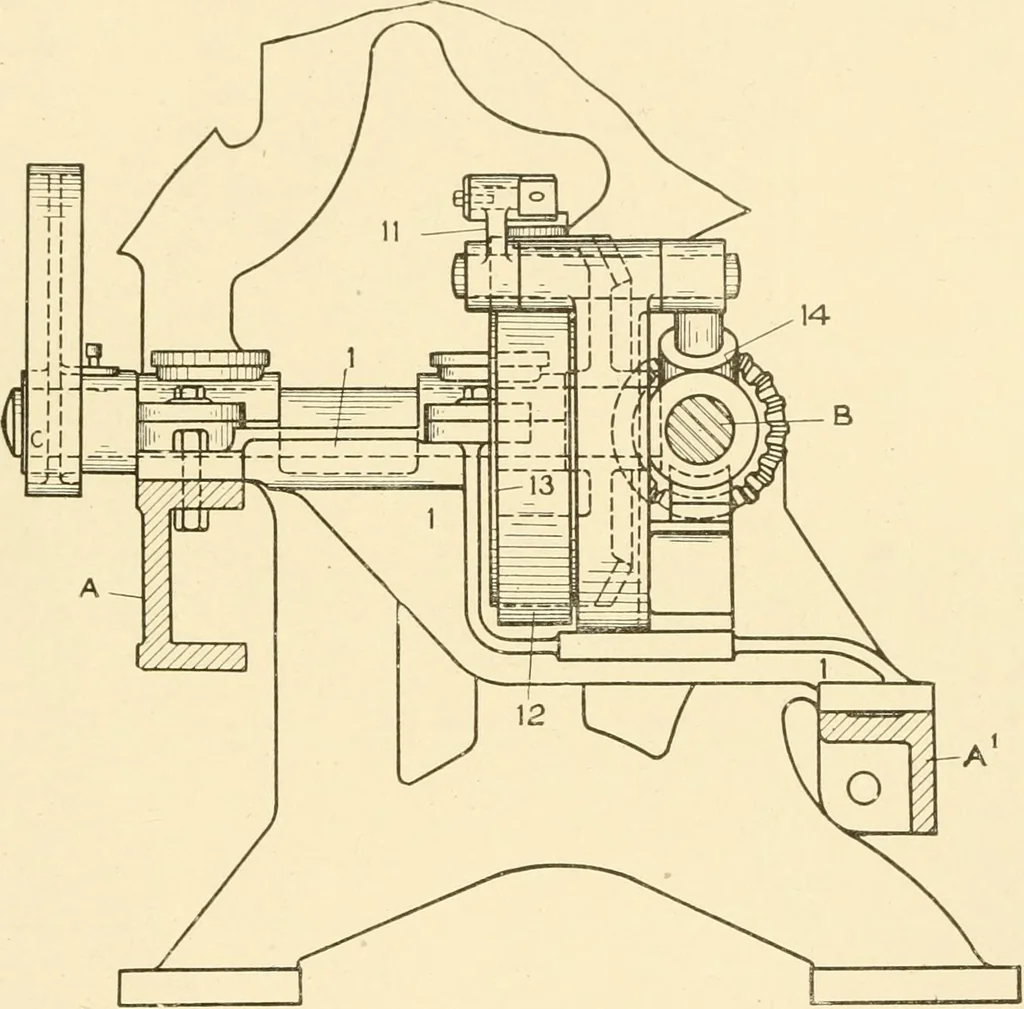

: The lever 11 is pivoted at one end to a shaft 12, and is provided 286 KNITTINC; 209 intermediate of its length with a roller 13, which bears normally uponthe concentric periphery 14 of a disc fixed to the rotary shaft 15, uponwhich the lever is thus supported without movement; but when theshaft… … Fig. 181 Draw-Cam Shaft, I3eariug, and Crako. nected to the free end of the lever 11. is a rod 17, the upper end 18 ofwhich is engaged so as to slide in a sleeve 20, which in turn is pivotallyconnected at 21 to an arm 22 fixed to the shaft 8. The free movementof the rod-end 18 in said sleeve is…
Textile industry · Textile fabrics
