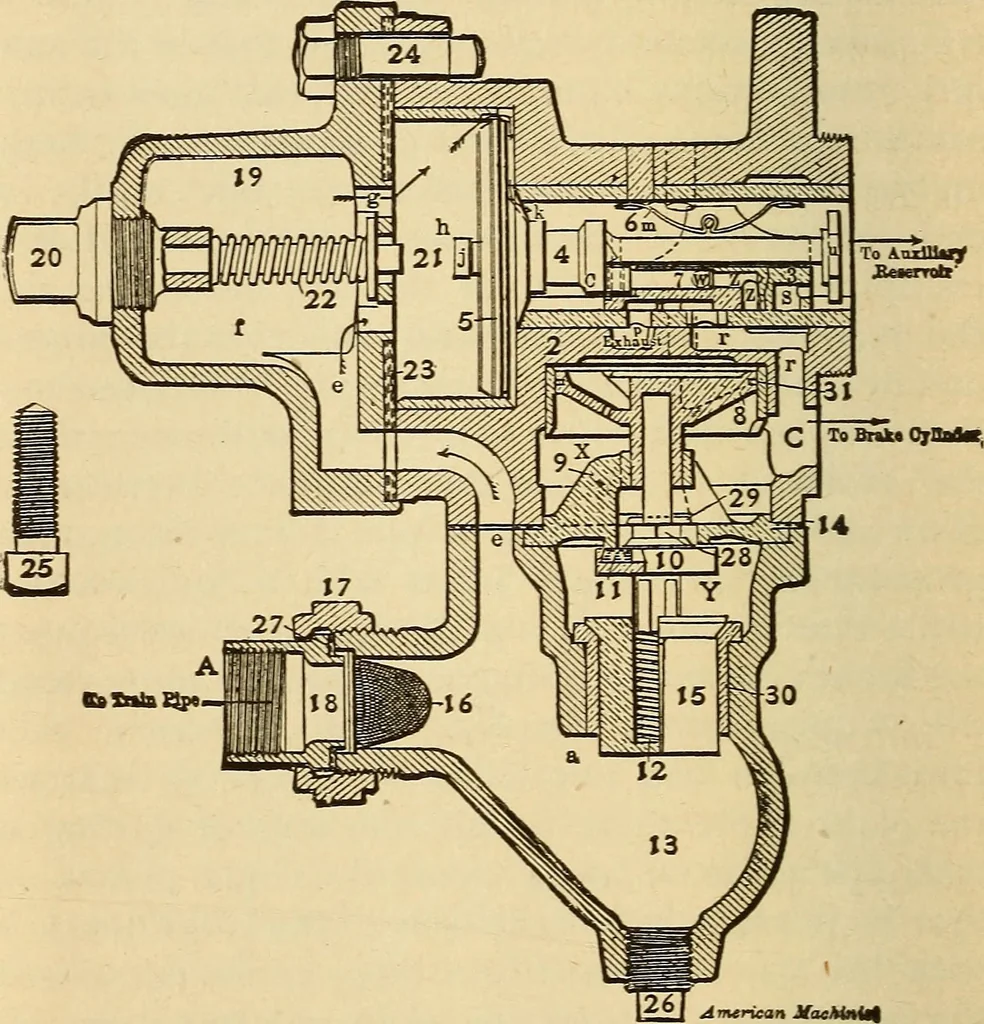

tlet is called the emergencyvalve. and is shown in Fig. 237. The parts contained in the quick action triple whichare not in the plain one, are shown in Figures 234, 235,236 and 237, and are indicated as follows; The emer- 00^ LOCOMOTIVE ENGINEERING gency piston is marked 8; the guide for this… … Avuriean MaeM^Itt Figure 234QncK-ACTiox Triple ix Release axd Chargixg Position marked 14. This gasket extends clear across thetriple, but a portion of it is cut away just over theemergency valve so that when that valve is unseated,as it is in an emergency application, the air in chamberY can pass…
