Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 636

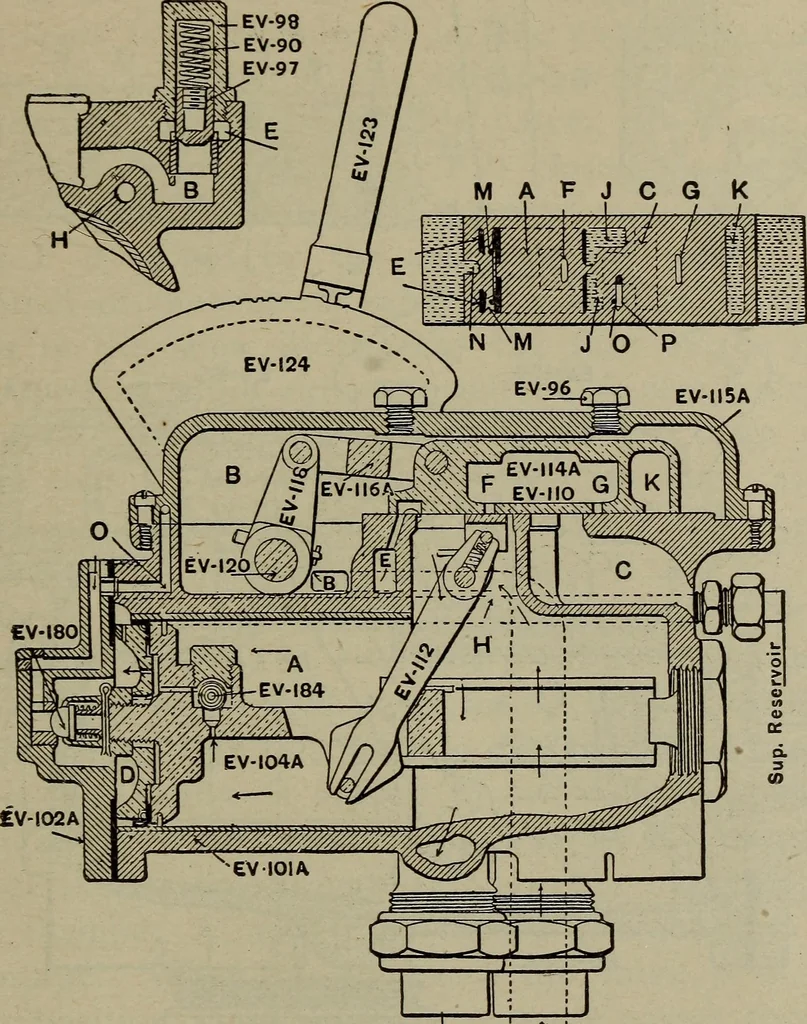

EV-102A Figure 249 New York Engineers Brake Valve, Release Position i top right-hand corner is a sectional view of the excesspressure valve, while in the top left-hand corner is a,view of the main slide valve, and valve seat. In| AUTOMATIC AIR BRAKES 593 studying this view of the face of the main… … —r r • Train Pipe Main Reservoir Figure 250New York Engineers Brake Valve, Running Position the slanting lines represent the face of the main slidevalve, while the dotted horizontal lines represent theslide valve seat. It will be noticed that port K inthe main slide valve extends across nearly the…
