Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 639

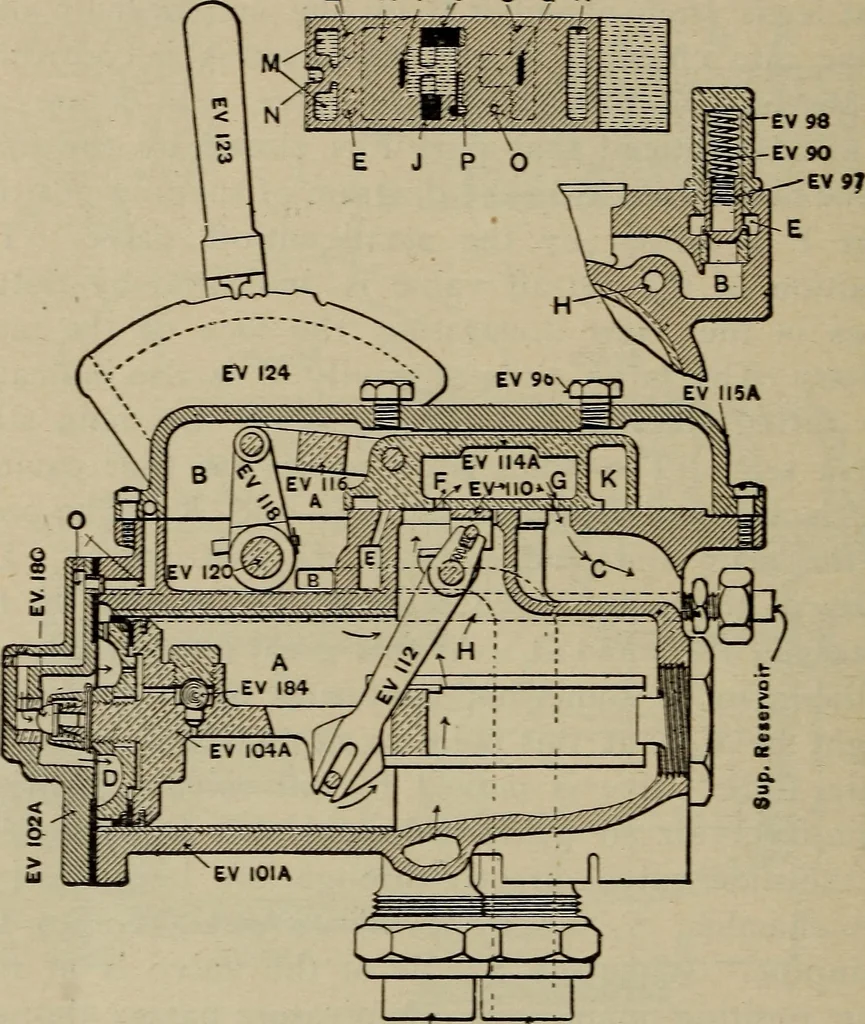

heslide valve, into port A and thence to the trainpipe.While the air is passing from chamber B throughcavity M it is also passing through chamber E intcthe pump governor pipe. In lap position, ports jand A in the slide valve are closed by the main slidevalve, and exhaust port F is kept closed by… … Train Pipe Main Re&enrofr Figure 252 New York Engineers Brake Valve, Service Graduating Position back of the cut-off valve so that, while mainreservoir pressure is shut off, trainpipe pressure canpass up through port F in the main slide valve AUTOMATIC AIR BRAKES 59 j and out through port G…
