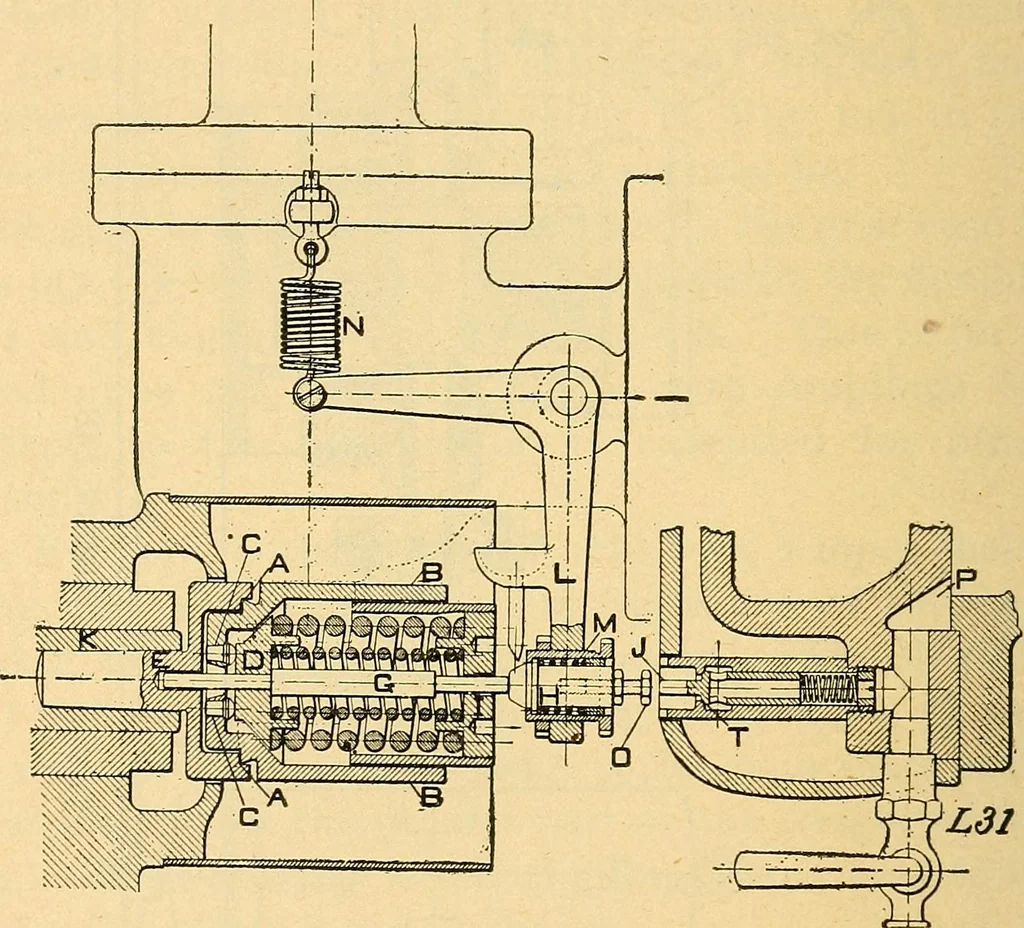

402 ENGINEERING of the enormously high speed of this turbine iseliminated. The governor is of the centrifugal type, althoughdiffering greatly in detail from the ordinary fly ballgovernor, as will be seen by reference to Fig. 149. Itis connected directly to the end of the gear wheel shaft.Two… … figure 149. hardened pins C, bearing on the spring seat D. E isthe governor body fitted in the end of the gear wheelshaft K and has seats milled for the knife edges A. Itis afterwards reduced in diameter to pass inside of theweights and its outer end is threaded to receive theadjusting nut I, by…
