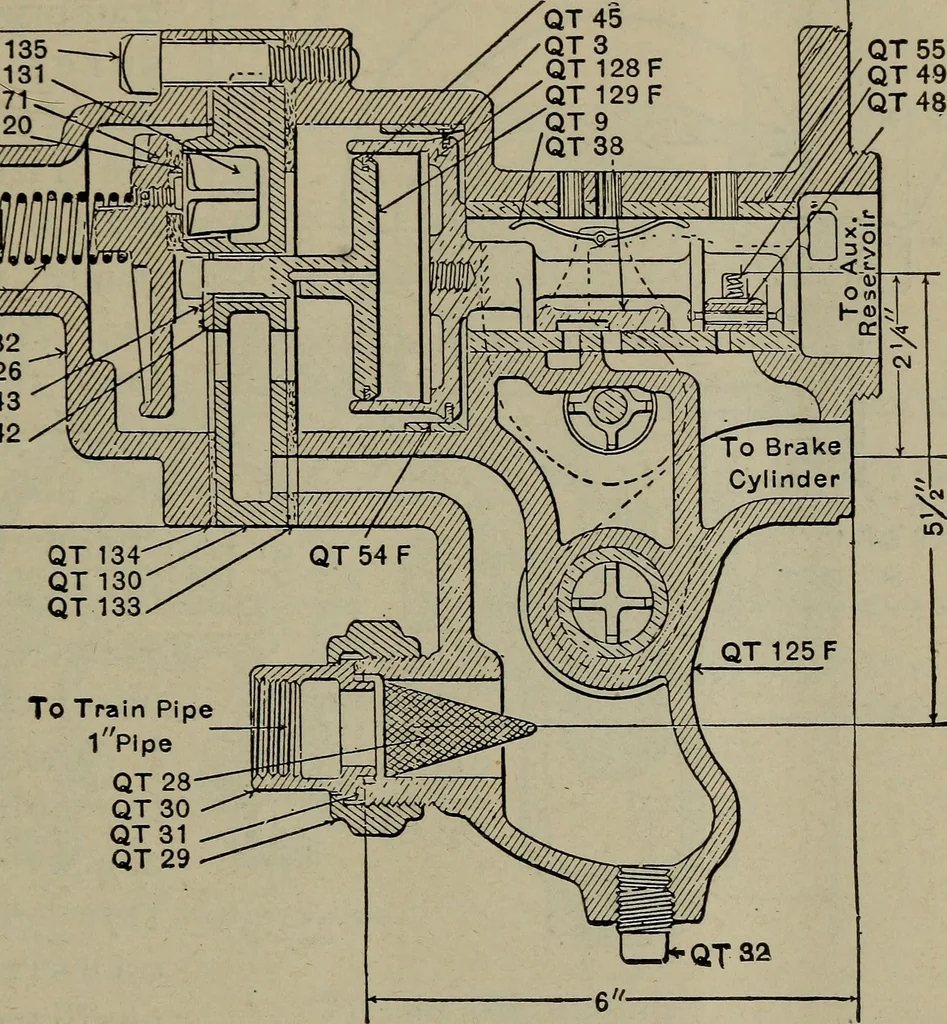

QT132QT126QT143QT 142 OT55F/QT49/QT48 To Train Pip«TPlpe QT28-QT30QT31QT29 … Figure 261Style F. New York Quick Action Trlple Valve is caused in the trainpipe pressure, it causes the auxil-iary pressure to drive the main piston back so quicklythat port F is closed before chamber G can emptyitself, and with an air cushion between the twopistons, the stem of the vent piston…
