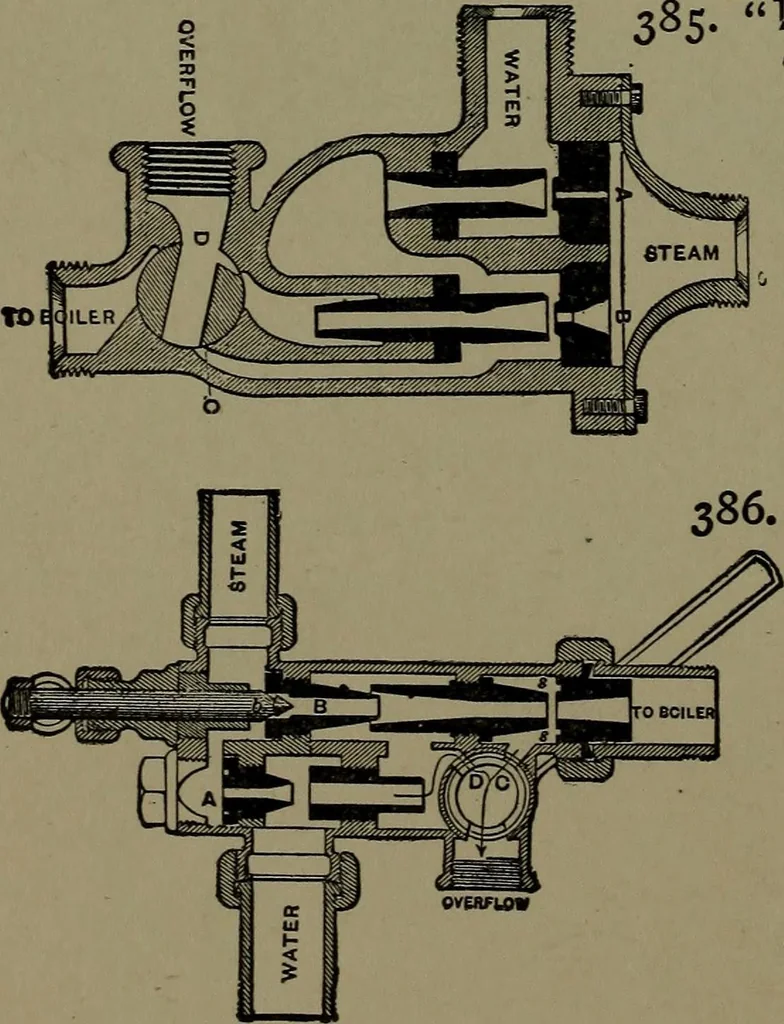

BROWNLEY INJECTOR.— The steam flows to the double-jet nozzles without any regulat-ing device other than the over-flow cock, which by this pecu-liar construction relieves bothlift and force tubes. LEADER INJECTOR.—A double-tube injector. Aseparate valve gives steamto the lifting nozzle A, withthe…
