Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 688

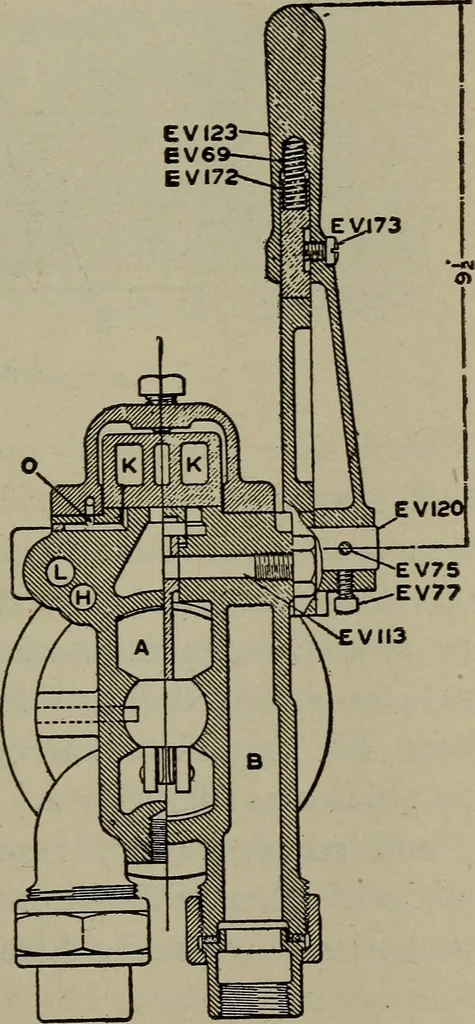

EVI30EVI21 … Fig. 269. ,PIPE I PIPE TO TRAIN PIPE TO MAIN RESERVOIR Fig. 270. 636 LOCOMOTIVE ENGINEERING the slide valve (Fig. 271) and exhaust passage C. Themain slide valve also controls the flow of air from themain reservoir to the brake pipe. In Full automatic re-lease position air is free to pass from the…
Locomotives
