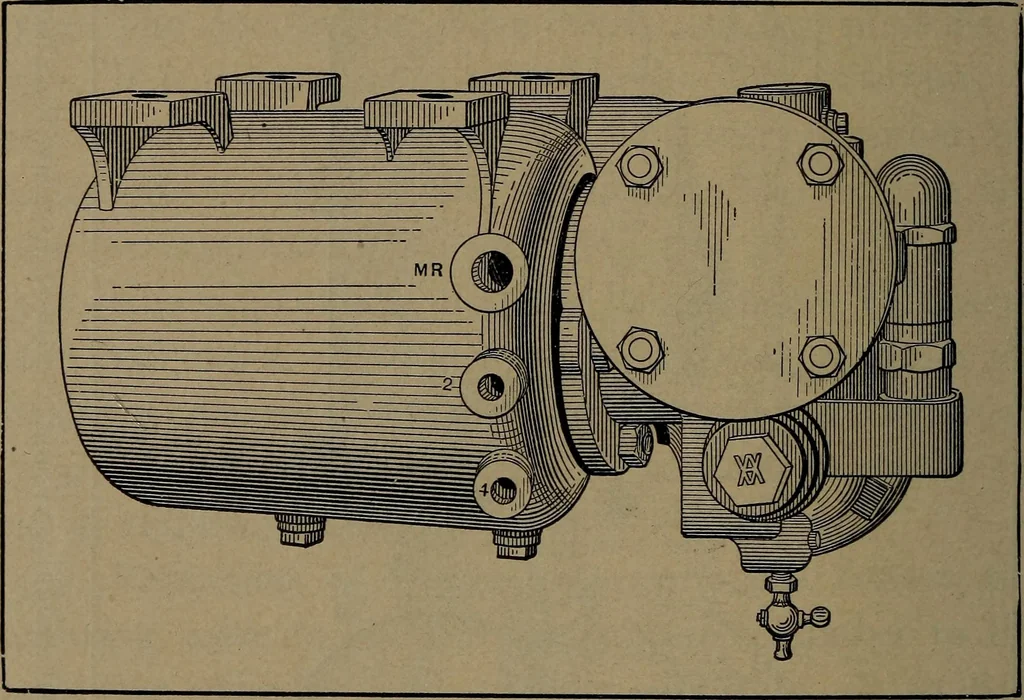

196 THE DISTRIBUTING VALVE illustrated in Fig. 54. There are three pipes connectedto the left side and two to the right side of the double-chamber reservoir. The pipe connections are made tothe reservoir body direct, to avoid disturbing the pipejoints when necessary to take the valve apart. … Fig. 54.—Distributing Valve Pipe Connections. 588. The connection marked M R leads from themain reservoir and supplies air to the application portionof the valve. 589.^ The middle one (marked 2) connects with the ap-plication chamber and application cylinder. This pipewill allow air to pass in or…
