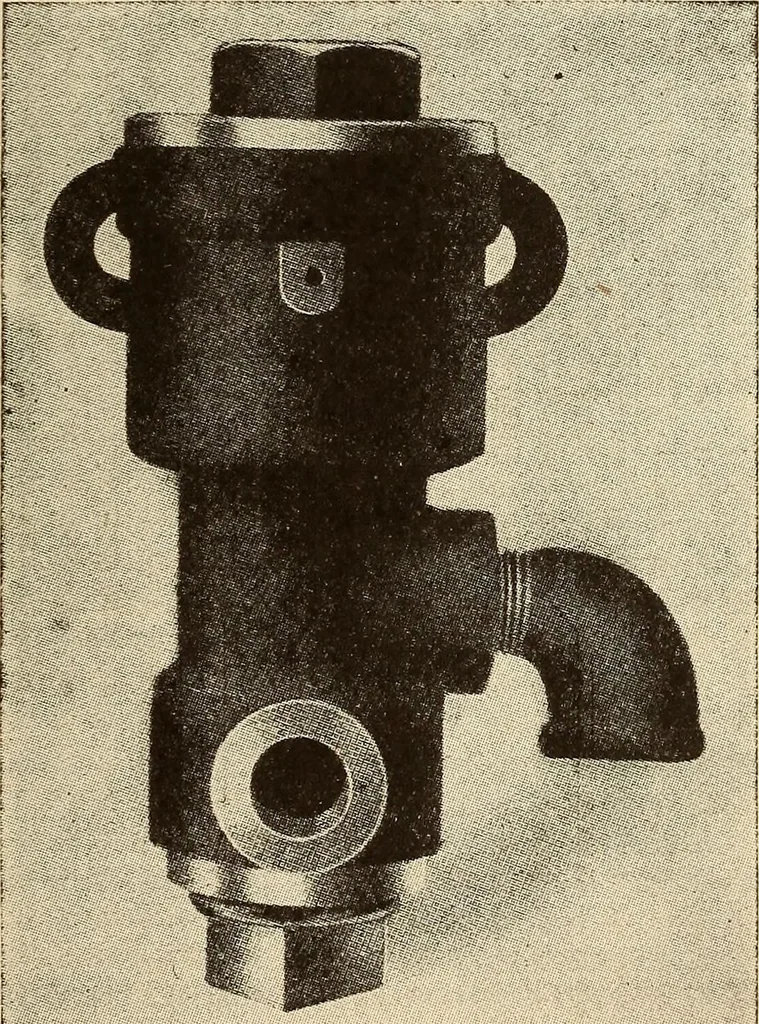

Lifting Stem; PG 48 Body; PG 49 Cap;PG 94 Guide; PG 95 Valve; PG 99 i^ union nut; PG100 134 union swivel; EV 60 Small union nut; EV 128Small union stud; EV 158 Union swivel (^ copperpipe) ; SA 6 Leather seat; SA 39 Valve stem nut; AV 28Hand wheel nut. ACCELERATOR VALVE. This valve is designed to… … Fig. 287. Accelerator Valve. The Valve is perfectly automatic in its operation, be-ing governed entirely by the volume of air in the brakepipe, operating only when the train is of such a length 651 652 LOCOMOTIVE EXGIXEERIXG as to warrant the use of same. The operation is similarto that of the…
