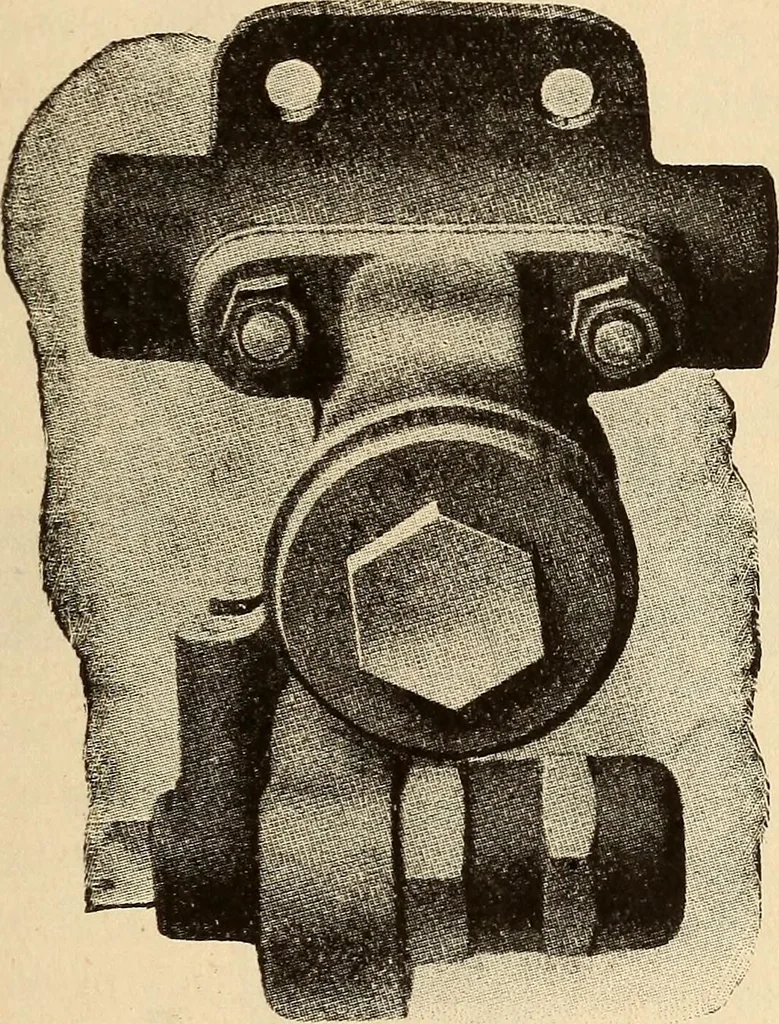

ston-SpringTip; 8, Supply-Valve Piston; 9, Piston Packing Ring;10, Supply Valve; 11, Supply-Valve Spring; 12, Regu-lating-Valve Cap; 13, Regulating Aalve; 14, Regulating-Aalve Spring; 15, Diaphragm; 16, Diaphragm Ring; 17,Diaphragm Spindle; 18, Regulating Spring; 19, SpringBox; 20, Upper Stop; 21,… … FIG. 320. REDUCING VALVE tion of which is the same as the feed valve just described,with the exception of the adjusting feature, this valvebeing designed for single adjustment only. THE PUMP GOVERNOR. view of this governor in Fig. 321 shows a sectionalits normal position. By reference to the piping…
