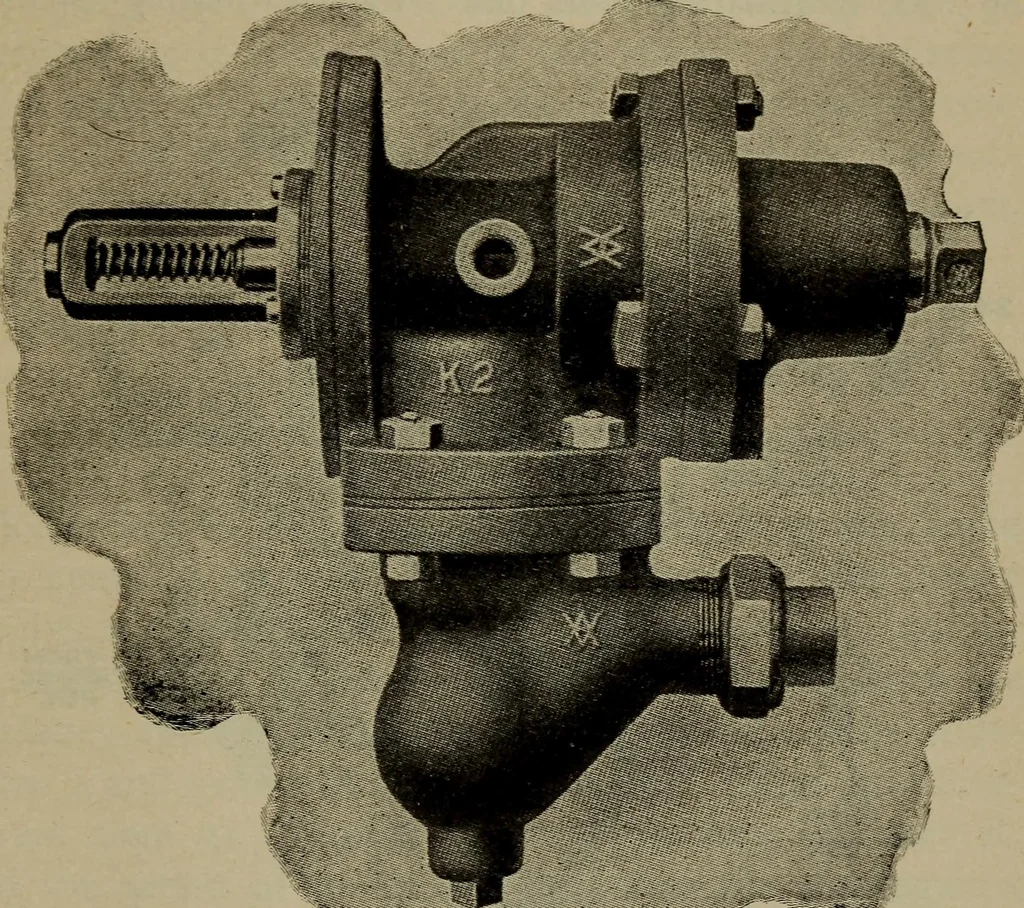

ET BRAKE EQUIPMENT 727 is marked with its designation on the side of the valvebody, and the K-2 may be distinguished from the K-iby the fact that it has three, as compared with two, boltholes in the reservoir flange. Also, in order to distin-guish the type K valves from the old standard type,… … FIG. 323. THE TYPE K FREIGHT TRIPLE VALVE auxiliary reservoir, a lug is cast on the top of the valvebody, as shown in Fig. 323. This enables anyone tolocate them at once. Fig. 324 is a vertical cross section of this valve, andthe names of the various parts are as follows: 728 LOCOMOTIVE ENGINEERING…
