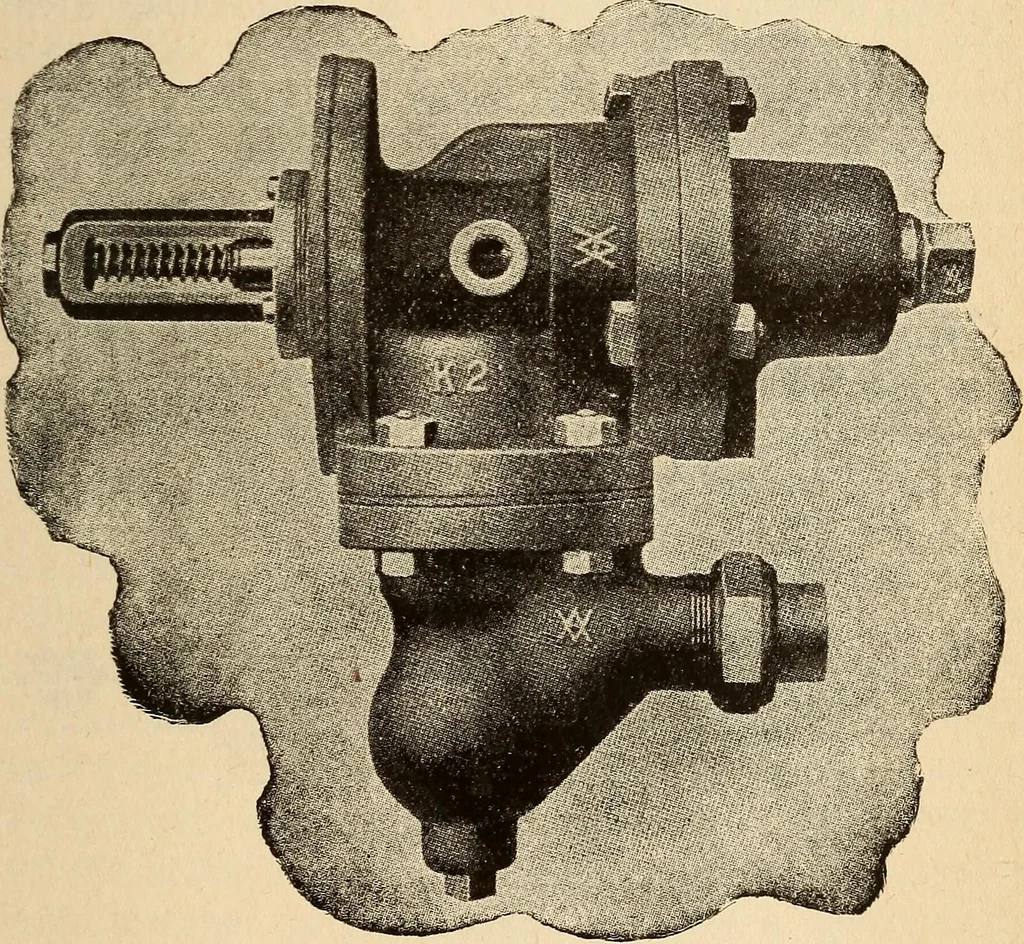

ght-car brake cylinders, corresponding withthe H-2 (H-49). The K-i will bolt to the same reser-voir as the F-36, and the K-2 as the H-49. Each valve ET BRAKE EQUIPMENT 727 is marked with its designation on the side of the valvebody, and the K-2 may be distinguished from the K-iby the fact that it… … FIG. 323. THE TYPE K FREIGHT TRIPLE VALVE auxiliary reservoir, a lug is cast on the top of the valvebody, as shown in Fig, 323. This enables anyone tolocate them at once. Fig. 324 is a vertical cross section of this valve, andthe names of the various parts are as follows: ^2^ LOCOMOTIVE ENGINEERING…
