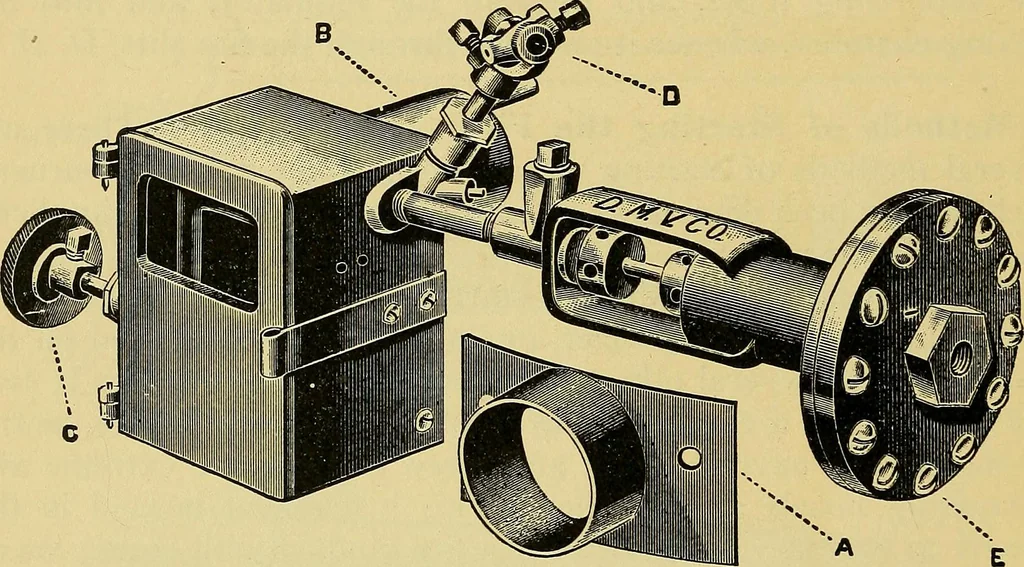

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 619 — ntothe double bent tube of the torch through the screw and valveattachment. The result is that, passing through the heated tube,it is vaporized, and the burner is ignited by a match or paper lamp-lighter thrust through an aperture prepared for that purpose. An Auxiliary Coil Starting Device.—The… … Fig. 445.—Starter Box and Diaphragm Regulator of the Dayton Burner.The parts are: A, segmental plate and collar at opening of the mixing-tube; B, thimbie on starter box containing supply pipe to tne mixing-tube and burner; C, starting valve; D, knuckle joint for connecting con-trol valve to drivers…
