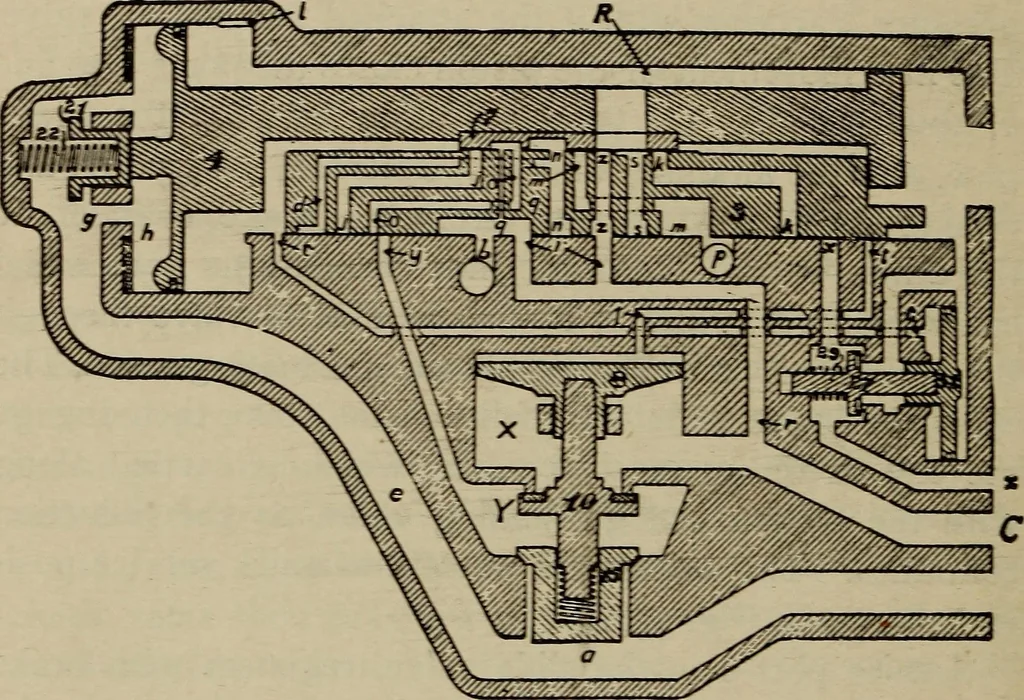

alve, in that it causes a slight, but 790 LOCOMOTIVE ENGINEERING definite reduction in brake pipe pressure locally, at eachvalve. The effect of a reduction in brake-pipe pressure,made at the brake valve, is thus quickly and uniformlytransmitted from car to car throughout the train. Theamount of air… … .wr:\m FIG. 353. FULL-SERVICE POSITION service position, the quick service port y is restricted asit approaches this position and completely closed justbefore service port z is fully open, as shown in Fig. y^. The amount of opening given the service port in anycase, depends upon the rate of…
