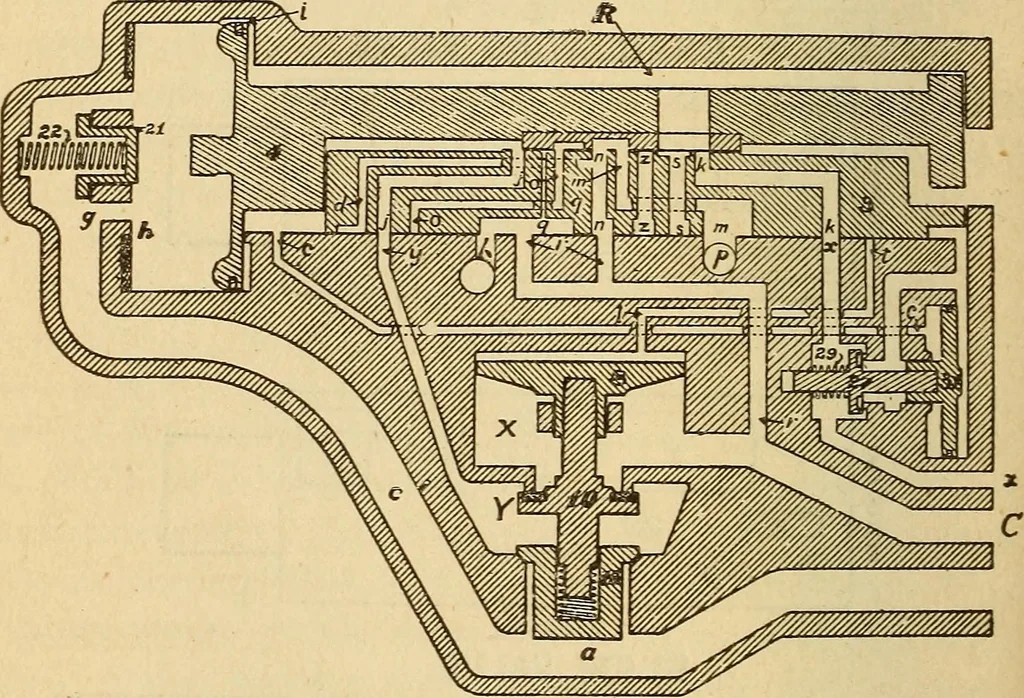

nd Nut for Cylinder Cap; 24, Bolt and Nutfor Check-Valve Case; 25, By-Pass Piston; 26, By-PassPiston Ring; 2J, By-Pass-Valve; 28, By-Pass-Valve 7^6 LOCOMOTIVE EXGIXEERING Seat; 29, By-Pass-Valve Spring; 30, By-Pass ValveCap; 31, By-Pass-Piston Cap; 32, Strainer; 33, E-7Safety Valve. Fig. 350… … FIG. 351. FULL RELEASE AND CHARGING POSITION necting passageways in any single illustration, figures352, 353. 354, 355 and 356, are presented, and eachshows in a diagrammatic way, the relations of the variousparts to each other, for the different positions of thetriple-valve piston. The actual…
