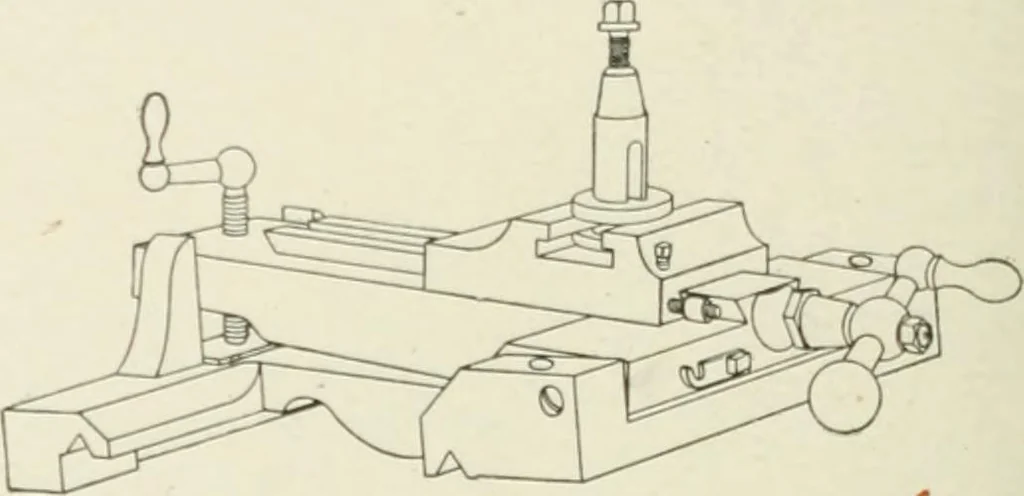

ting screw at the rear. VV^ith this iaused a tool post as sliown iu Fig. 122 with a plain ring. Theelevating rest is used quite extensively on small lathes, Ijut tlieconvenience of adjustment is gained hy a loss in rigidity. Thecross rail is light, and the elevating portion, being supported atthree… … Fig. 126. Turning Tools. The side or facing tool, Fig. 127, is the mostcommon form of lathe tool. It is used for S(iuaring up the endsof shafts, facing shoulders, and similar work. While the ordi-nary forms will not remove a large amount of metiil, they can,
