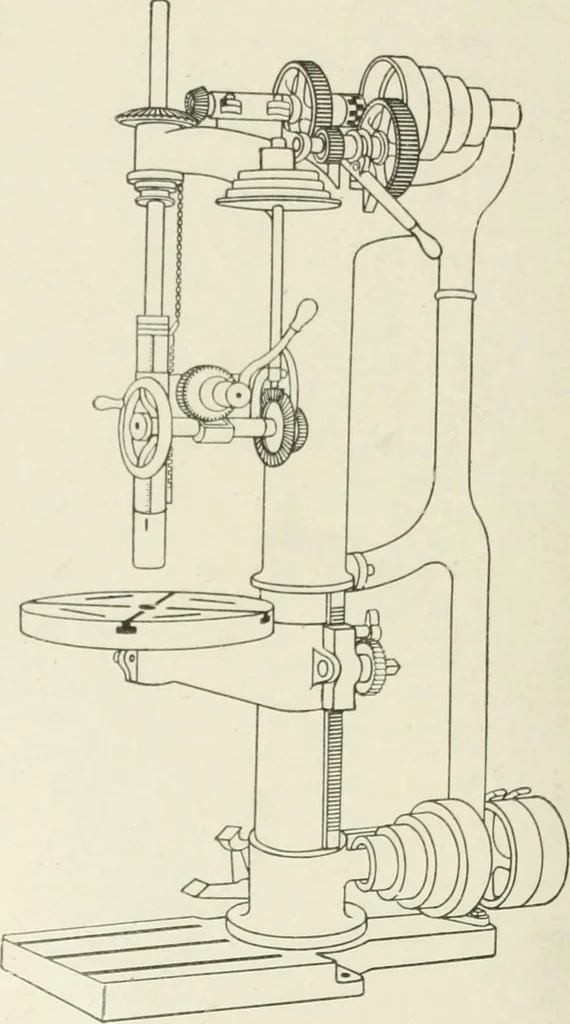

means of tlie handl^U ; tills drives a screw in tiie standard running in a nut fastenedto the bracket V. When the tiible has been adjusted, it may befastened by the nuts and bolts W clamping it to the standard A.When large work is to be drilled, the table may be swung out ofthe way and the work… … Fie. 164^ 132 MACHINE SHOP WORK. 115 Wliile the ilrill press just described may be taken as rep-resenting good practice in the smaller sizes, a different formof construction is often employed in larger towls. A drill pressof this class is shown in Fig. 164. Drilling machinery is madeboth horizontal…
