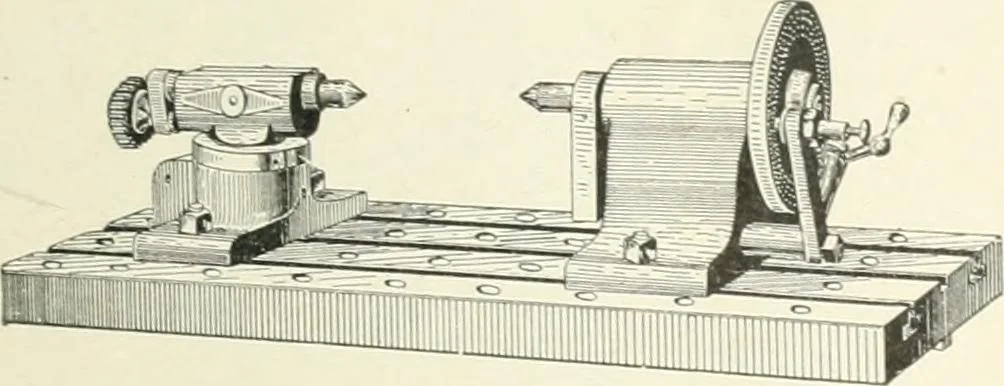

xiliary table with a surface at right angles to the 144 MACHINE SHOP WOEK. 125 nKtii\ table. ]Mimy useful applications of these Iiokliiig deviceswill suggest theiuselves. Another niethoil of holding work is by using a vise such asis shown in Fig. 177. The body is bolted to the platen and tliework… … Fig. 178. The Plate Planer. A special form of planer extensivelyused in boiler .shops and shipyards is the plate planer, Fig. 179.It is used for planing the edges of long plates. The plate issecurely fastened between the clamps A and the bed B. Thetool is held in the carriage C, which is moved to…
