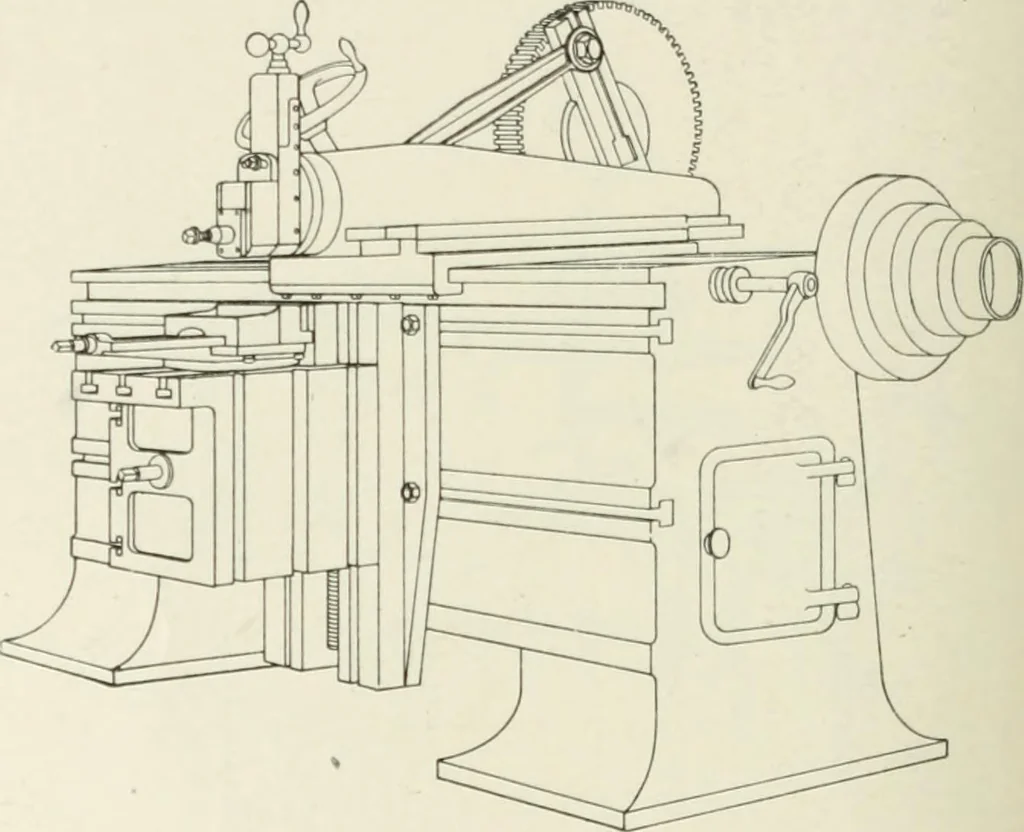

Fir. 180. work is at rest. A suitable mechanism causes the ram A to moveto and fro. When moving toward the left, the tool is cutting.As in the ordinary planer, the cutting speed is less than tiietetxrrn. 128 MACHINE SHOP VVOEK. The work is held on the table R, whicli may bo adjusted toany… … ing the handle C. This is the onliiiary method of obtaining thevertical feed. The horizontal feed is obtained by moving the table 15 side-wise. In some shapers it can also he moved vertically to feed toor from the tool; in others the hcrlzontal feed is obtained bycausing the tool with the…
