Mechanical drawing; a treatise on the drawing of mechanical and machine details (1920)
Jones, Franklin Day, 1879-1967 · New York, The Industrial press; [etc., etc.] · leaf 87

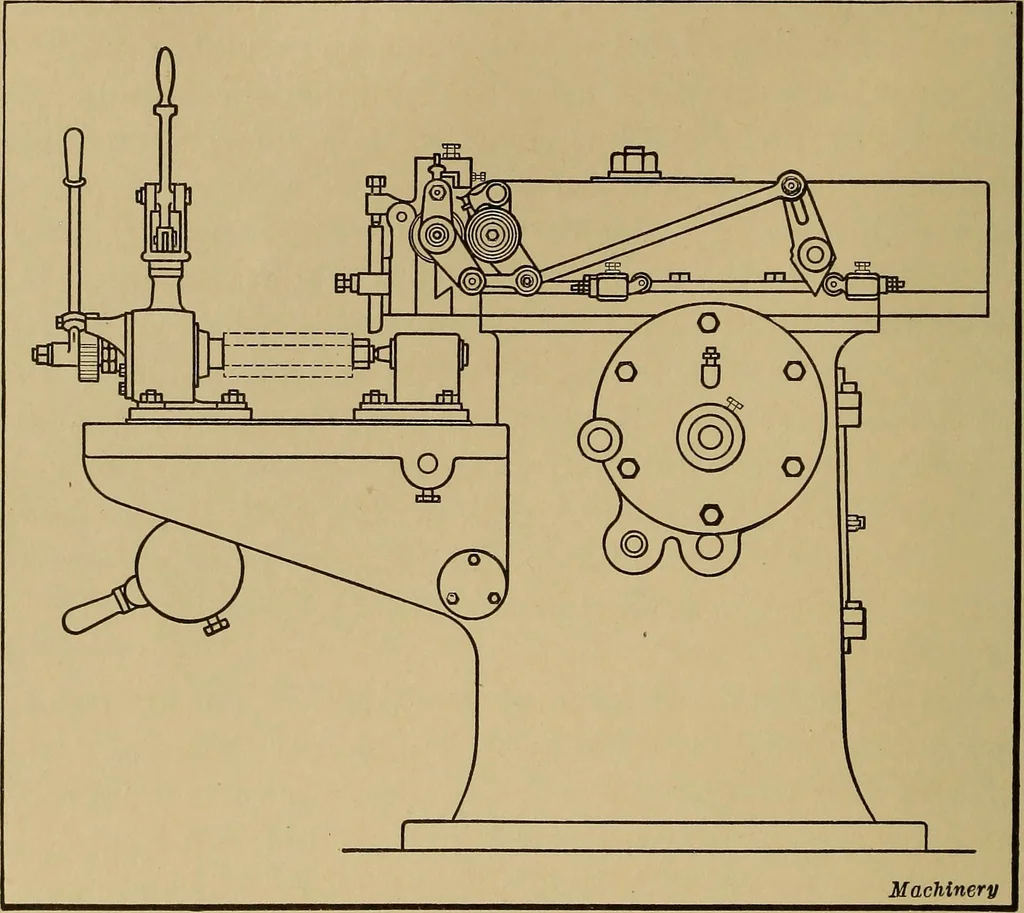

interwoven that the drawingcould not be used as a guide when constructing the mechanism. 74 MECHANICAL DRAWING It is frequently necessary, therefore, to make separate draw-ings which show the details more clearly than a completedrawing of the entire machine. There are then general orassembly… … Fig. 1. Side Elevation of a Nut-planing MachineDrawing An Example of an Outline of drawing), or the assembly drawing of a comparativelysimple mechanism may contain all the necessary dimensions,in which case it is a working drawing, the latter term beingapplicable to any drawing which contains the…
Mechanical drawing
