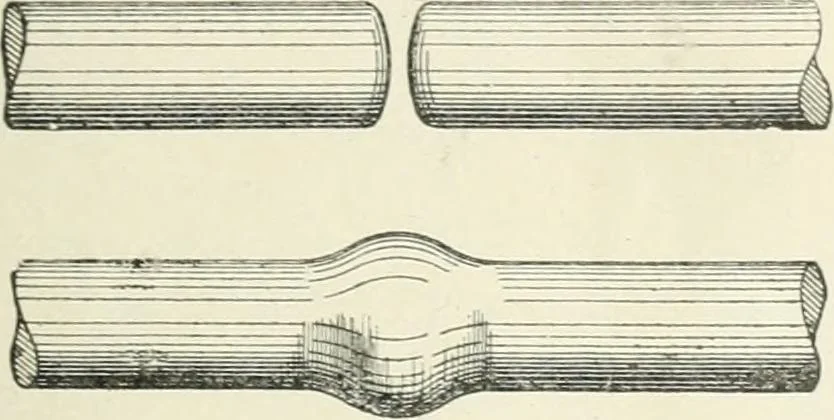

MACHINE FOR PUNCHING OR SHEARING.Showing Motor and Gearing.The Long ami Allstatter Co. FORGING 19 out the scale and leaves a clean joint. As the pieces are driventogether they are more or less upset at the joint, making a sort ofa burr. This upset part should be worked down at a welding… … Fig. 26. by placing one piece in the fire from each side of the forge. \Vhenthe welding heat is reached the pieces are placed end to end, onepiece backed up with a hea\y weight, and tlie weld made bystriking with a sledge hammer against the end of the other piece.Jump Weld. Another form of butt…
