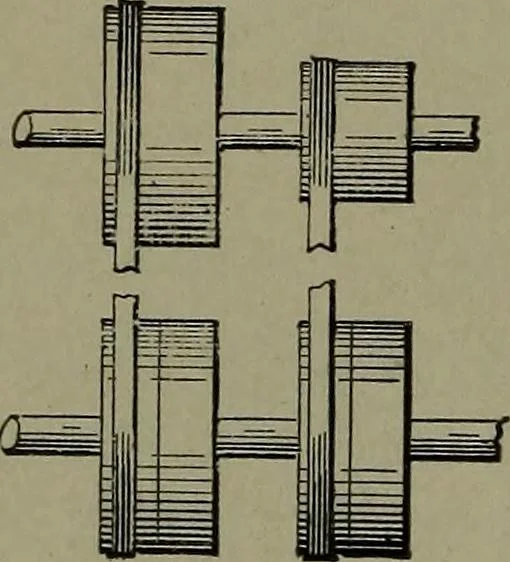

95. STOP, DRIVING, AND REVERSINGMOTION with a single belt, which may be oper-ated either way : from the drum on a driving shaft,or from the bevel gear on shaft C. The middlepulley being loose on shaft a, the right-handT\^ pulley tight on shaft a^ left-hand pulley tight onthe hollow shaft B, h. The… … 96. TWO SPEED PULLEYS AND BELTS. —Two pair of tight and loose pulleys on lowershaft, unequal broad tight pulleys on upper shaft.By crossing the belt from one of the pair a quickreturn speed may be obtained. Much used ontapping-machines and planers.
