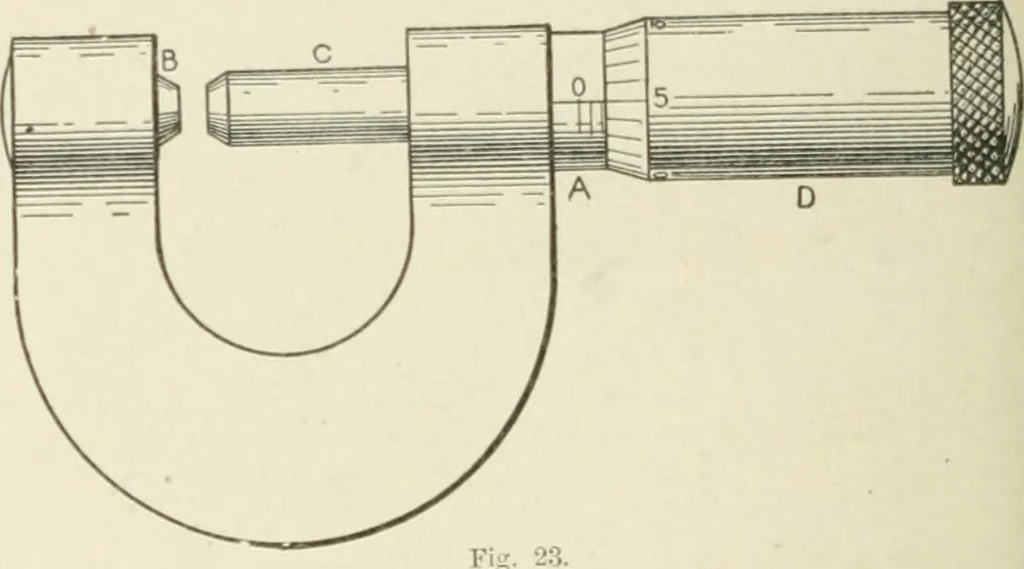

suring s.-ivxv and furnishingmeans for reading these subdivisi.ms. It is a registering as wellas an indiealing caliiK«r, and thus serves the pni-pose of a eommonealip-r in eombinati..M ^^ith a rule, hut with a mneh gi-eater decree of aecui-UV. It consists, essentially, of a creseenl.sliai.ed frame… … the crescent that is called the barrel. The measuring screw con-sists of a fine-pitched screw to fit the nut, combined with ameasuring point C, having a face parallel with that of the anvd.Firmlv attached to tlie outer end of this screw, is a tliimble D,fitting closely over the barrel; the edge of…
