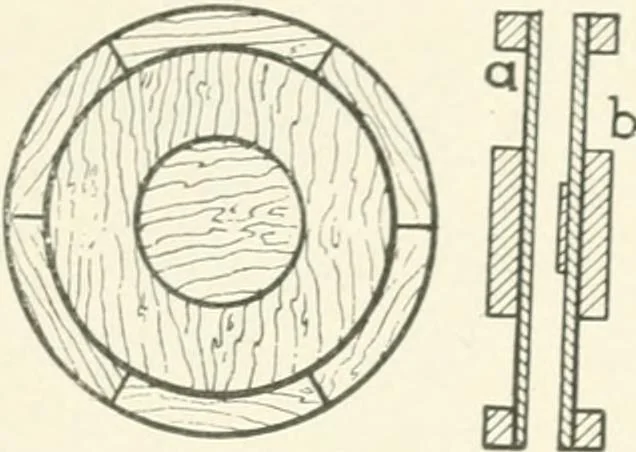

x segments to form the outer rimare glued around on the outer edge, care being taken to hreak jointsas shown in Fig. IGl. If the groove is to be large, the six segmentsshould be of half the thickness only, and a second set of segmentsof like thickness glued over the first, hreaking joints not only… … Fig. 162. tributcd as to giv(^ thu greatest possible strength to tlie riwi.In the present case, our pattern is so small that it is onlynecessary to us(; a thin board, | inch in thickness for each half ofthe web. After sawing to ().| inches in diauK^ter, -| inch for turn-ing, a block ^ inch in…
