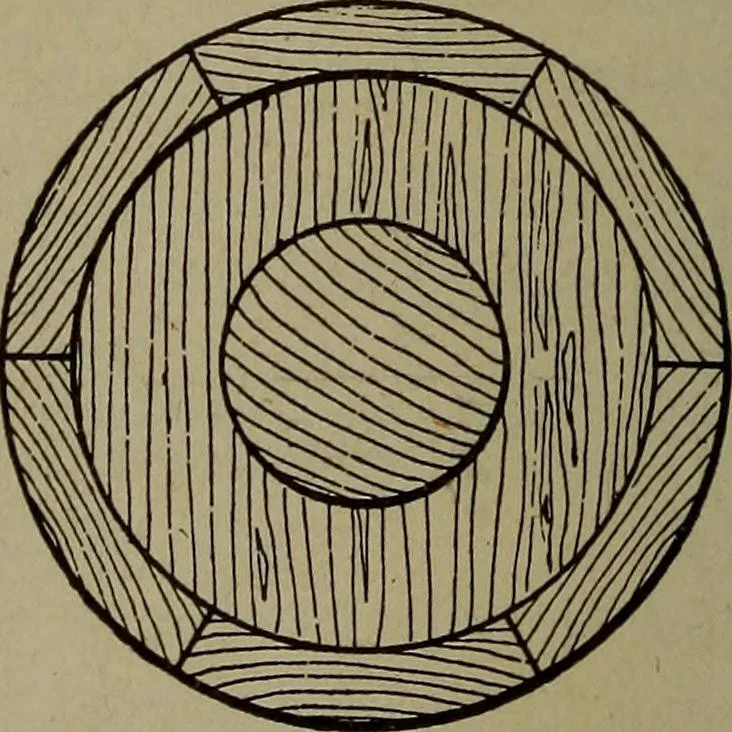

Fig 162. Web with Rim Glued On 7M Fig. 163. Construction Views of SheavePattern … must be so broken and so distributed as to give the greatest possible,strength to the rim. In the present case, our pattern is so small that it is only neces-sary to use a thin board J inch in thickness for each half of the web.After sawing to 6§ inches in diameter—\ inch for turning—a block\ inch…
