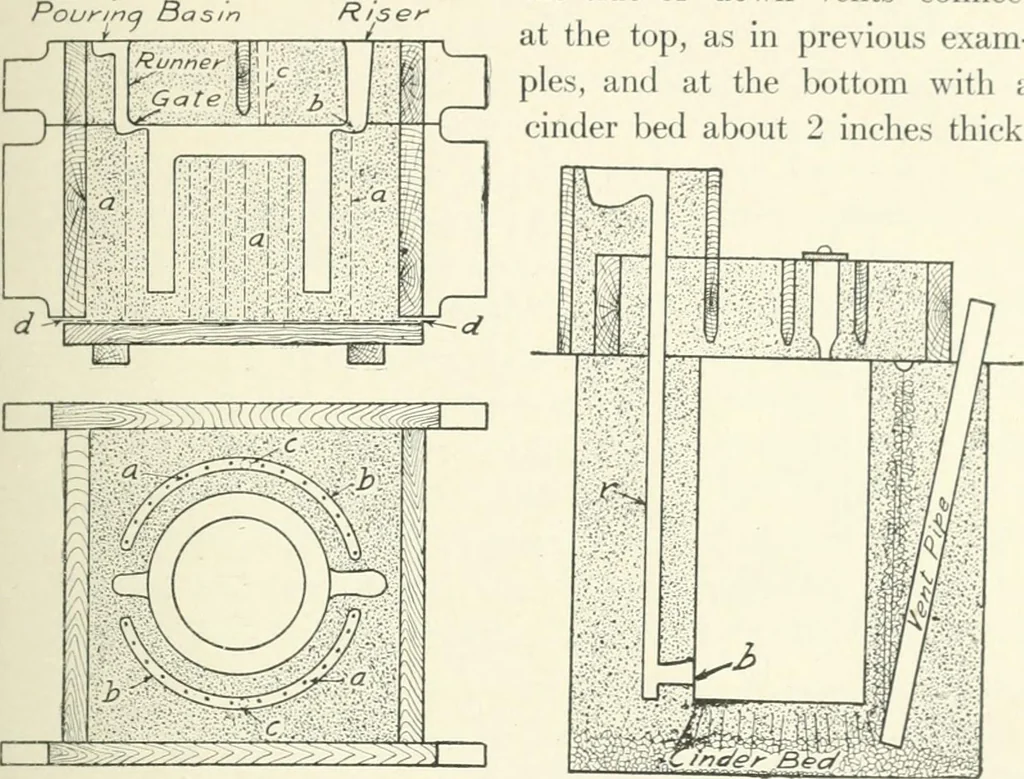

e vent-ing on sides and bottom as well as top. Fig. 21 shows side vents a a 174 FOUNDRY WORK 21 a a c-(jimectiiig with tlu* air tlirougli the channel h h h cut aiiMig jointand risers c c c passing through the cope. At the bottom the ventsconnect with cross vents d d run from side to side between… … Fig. 21. Use of Risers. Fig. 22. Mold Bedded in Floor. rammed over entire bottom of pit. The gases find escape from thiscinder bed through a large gas pipe. In pouring, the gas from vents should be lighted as soon as maybe. The burning at the mouth of vents helps draw the gases frombelow and also…
