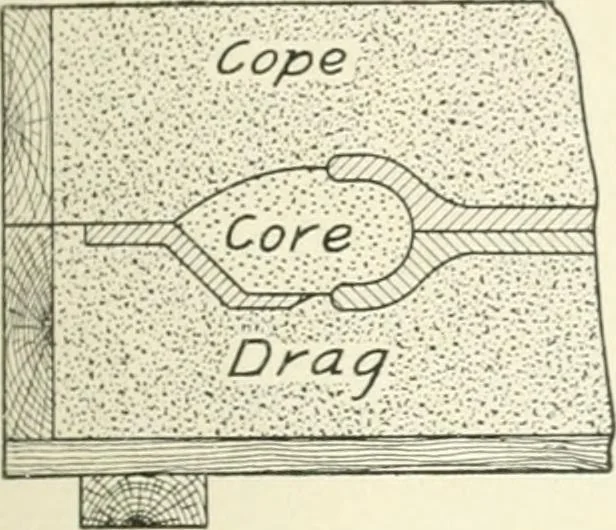

Fig. 46. 190 FOUNDRY WORK 37 of the drag pattern, allowing it to be removed. Replace the ring, dose the cf)pe, and the mold is complete. See half-section, Fig. 47. In larger work, where the parting planes are farther apart, this
