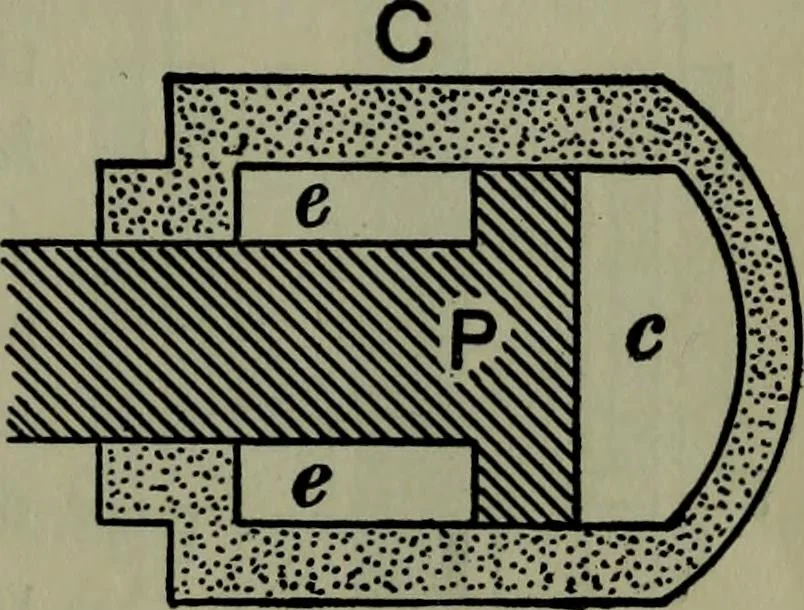

l stroke from right to left, the loadon the crane is lifted through its fullrange. The diameter of the piston-rod is so great that the annular areaforming the left face of the piston isonly about one-half that of the right-hand face (full circle). If a heavyload is to be lifted, pressure-water is… … Fig. 118. 7Z amount of pressure-water used is jd2-l cub. ft.; where I is the 252 HYDRAULIC MOTORS. §155. length of stroke and d the diameter of cylinder. But if a lightload is to be lifted, both sides of the piston are thrown intocommunication with the supply of pressure-water; the resultantworking…
