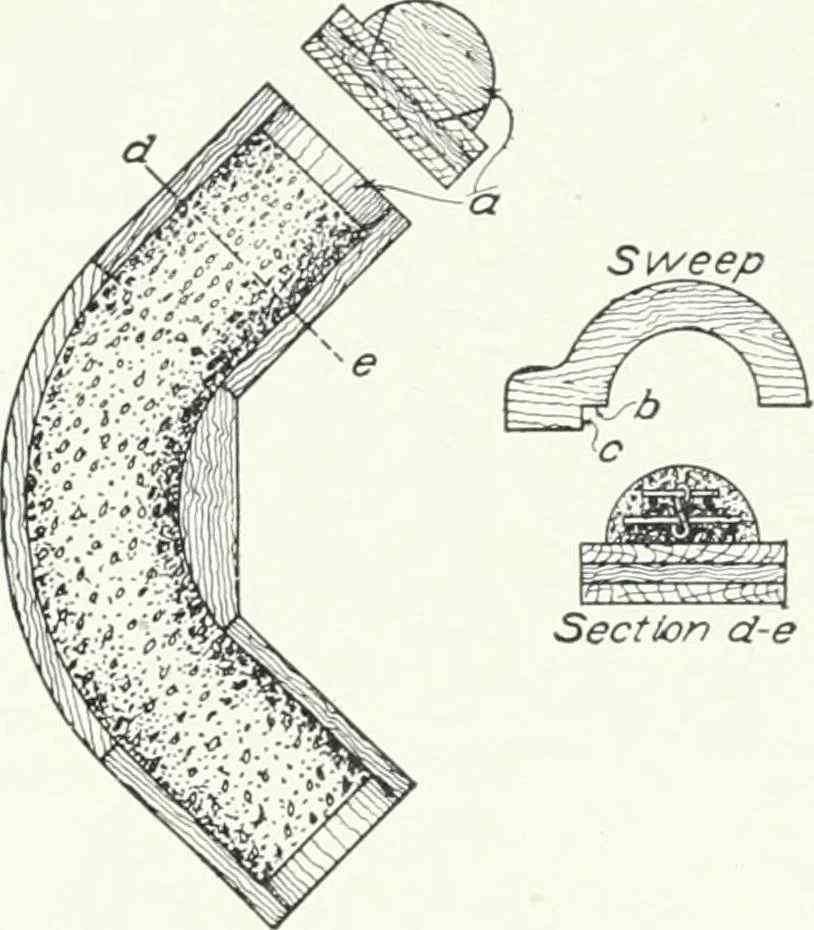

with the grain ofthe middle piece crossing that ofthe others to prevent warping.The outer edges of the boardshave the exact curve of the out-side of the pipe pattern, and at theends is tacked a half section ofthe core, shown at a a. Onesweep does for both boards.The curve is cut the exact… … Fig. Pipe Core,
