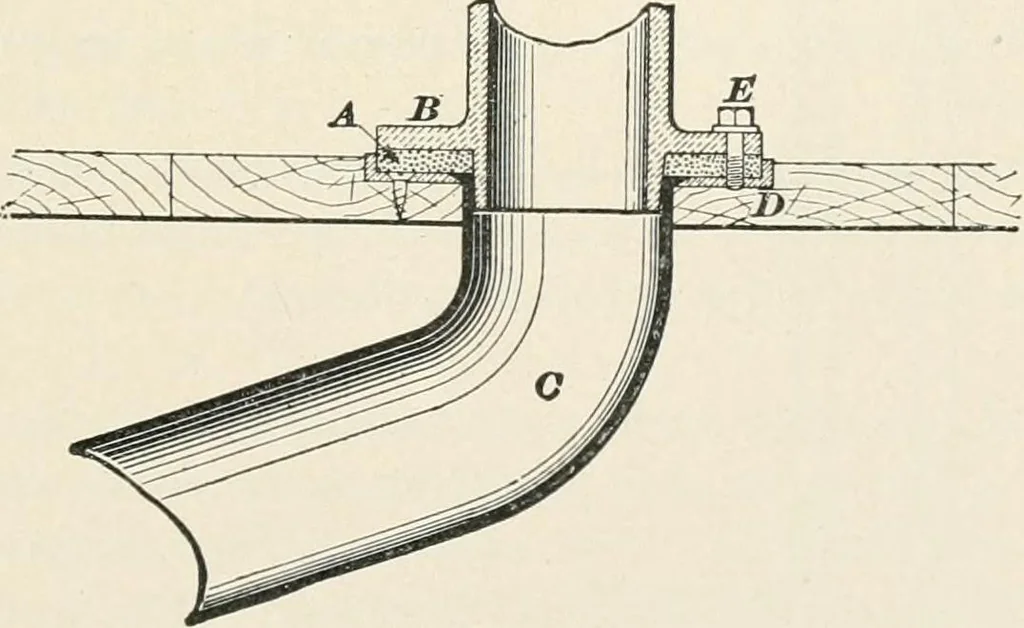

rubber blocks,or buffers of sufficient size and elasticity to prevent anydamage by their falling down upon the porcelain bowl. 38, The soil-pipe connection, that is, the joint betweenthe outlet of the water closet or trap and the soil pipe whereit passes through the floor, is a matter of great… … Fig. 20. hrsiss floor-plate joint, as shown in Fig. 20. The soil pipe branch C, if of lead, is soldered to a brass flange D, which is screwed to the floor. A rubber, or, better still, a red-lead4^3 28 PLUMBING AND GAS-FITTING. § 16 and hemp gasket A is put between the flanges, and theporcelain…
