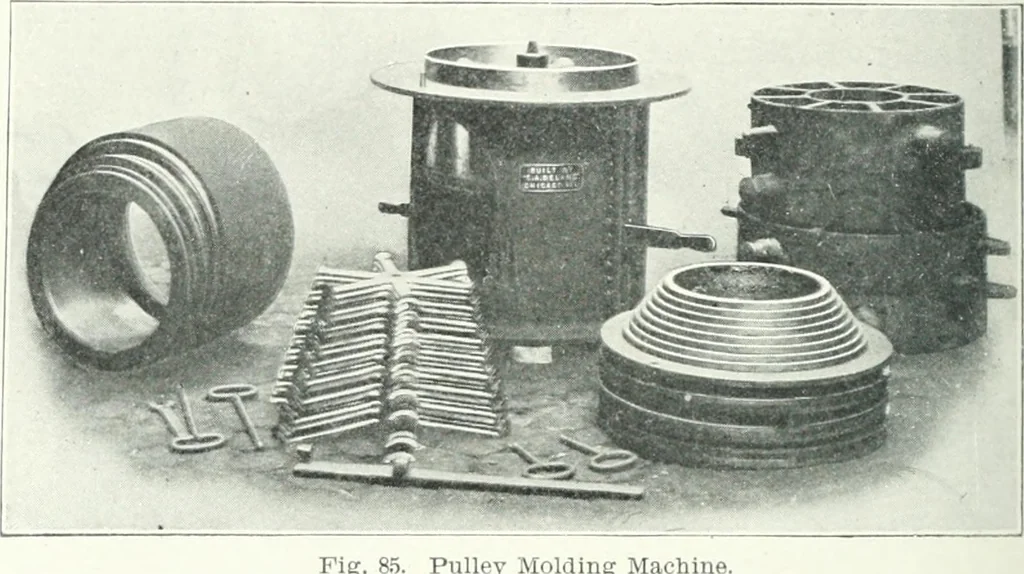

orted when the pattern is drawn. To accomplish this stools are used.A leg screwed into the stool plate supports the stool at the exact levelof the stripping plate. The stool j)late is fastened to the flat top of themachine inside of the box-like framework which supports the strippingplate. See Fig.… … Machine. struck off. A movement of the crank lever at the side draws the pat-tern. The mold is removed and set on a level sand floor, thus doingaway with bottom boards. A second stripping plate and pattern isused for ramming the cope boxes. Pulleys are manufactured on molding machines of this type,…
