Shop sketching, a course of problems for mechanical drawing students (1919)
Windoes, Ralph Flagg, 1890- · Milwaukee, Wis., The Bruce publishing company · leaf 50

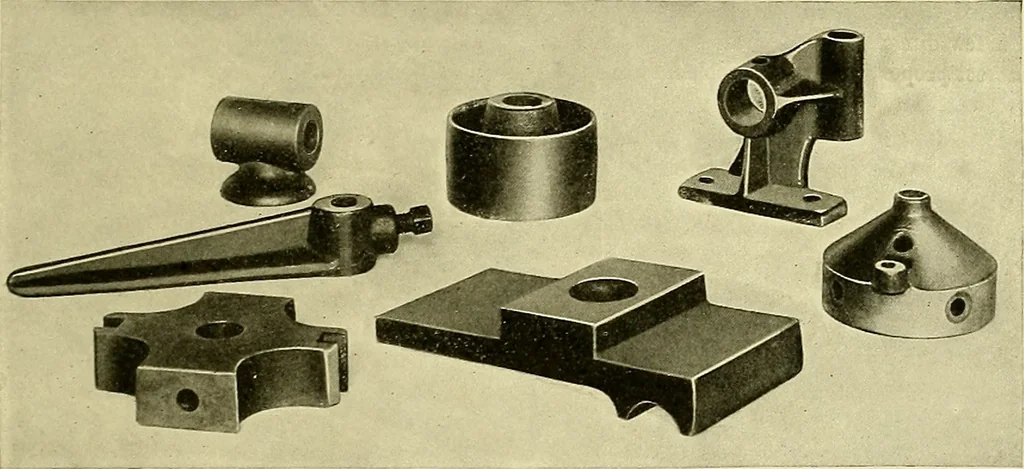

s properdimension line. When all have been completed, check it over to seeif any dimensions have been omitted. Are the threedimensions given for every piece and every part?Are the sizes and centers of holes carefully located,etc.? Remember that in actual practice if a workingdrawing is being made… … Figure 19 48 SHOPSKETCHING Plate 17 Figure 20 illustrates the body of a hanger and the front and side views, put on dimension lines, place it is required to make a working sketch from this the dimensions that are given, and estimate the figure. A few dimensions are given—just enough to others. This…
Mechanical drawing
