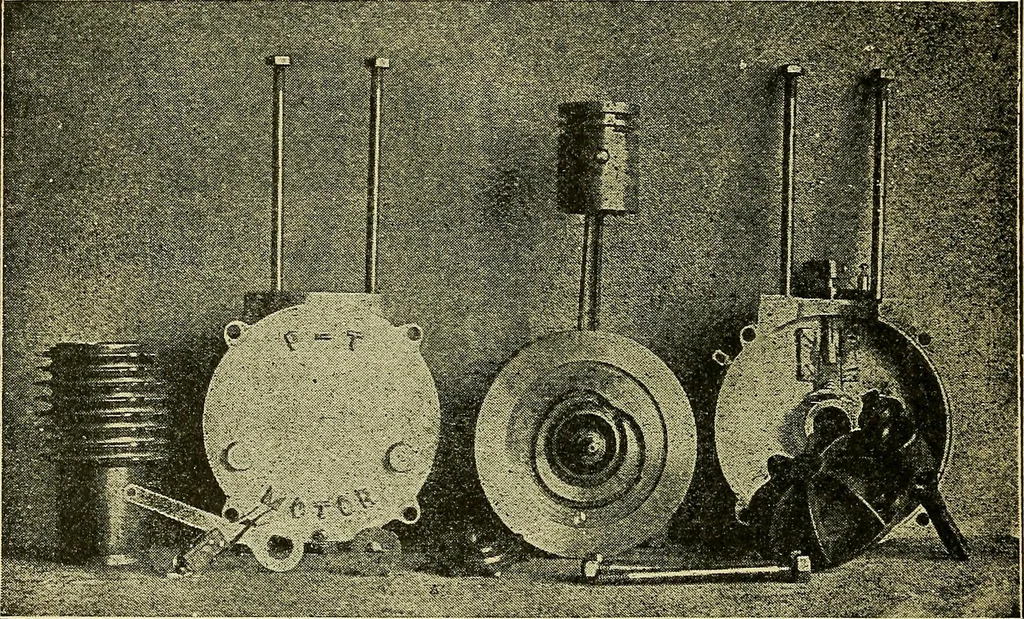

ES. expanding gas, the temperature must be raised on a steadilyincreasing ratio. In other words a given cubic content of ex-panding gas, at a constant temperature, shows a lower pressureper square inch as the expansion progresses, and, in order toobtain a given total, original, efficient pressure… … Fig. 140.— The Parts of an Air-Cooled Vehicle Motor, shown for an efficient make ofbicycle gasoline engine. The cylinder, carrying radiating ribs, is shown at the left.Next is the outside view of one-naif of the crank case; then the trunk piston with thepiston rod attached to the crank discs. At…
