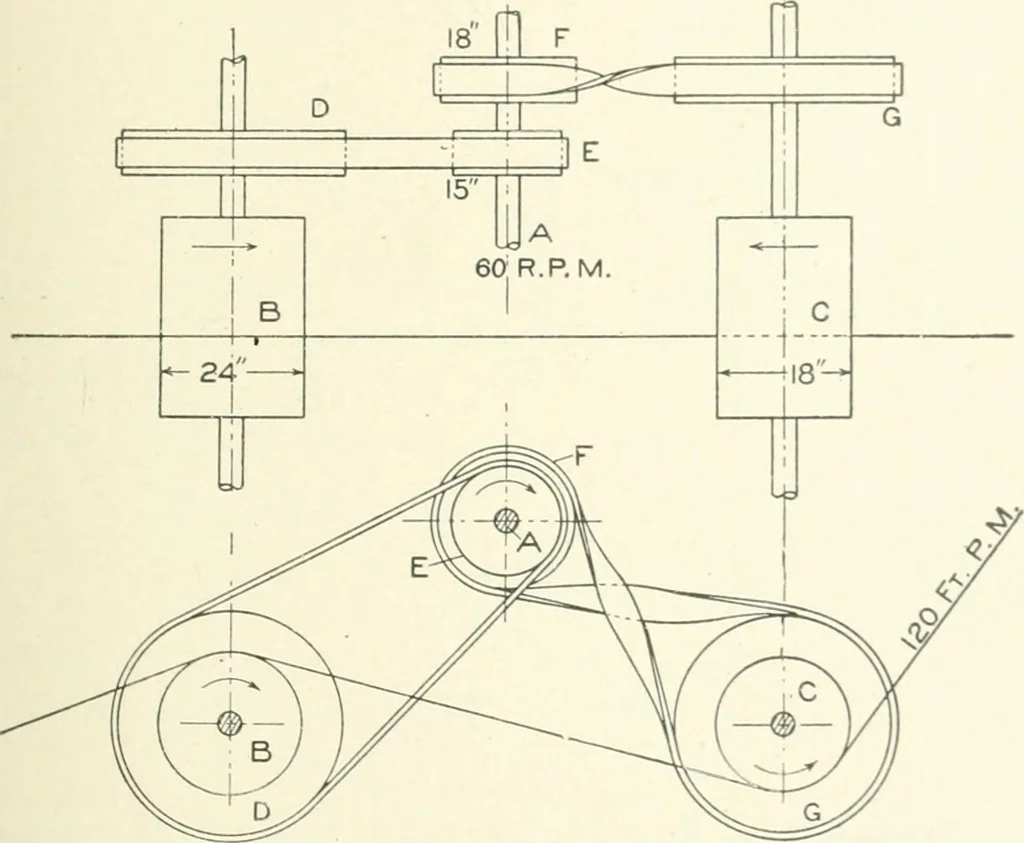

rface cannot be crowned, but must be cylindrical. As problems similar to the followintr often arise, this oneshould be studied carefully until every step is understood, luFiir. 1(), A is a shaft turninn; ()0 It. P. M. in the direction iiidi-cated by the arrow. I> and C are cylinders over which a… … Fig. 16. as shown. B is 2-4 inches in diameter, C is IS inches in diameter,and the cloth is to travel at the rate of 120 feet per minute. E isa pulley 15 inches in diameter, which drives the pulley D, on thesame shaft as B. F is a pulley 18 inches in diameter, drivingpulley, G, on the same shaft as…
