The essentials of gearing; a text book for students and for self-instruction, containing numerous problems and practical formulas (1911)
Anthony, Gardner C. (Gardner Chace), 1856- · Boston : D.C. Heath · leaf 23

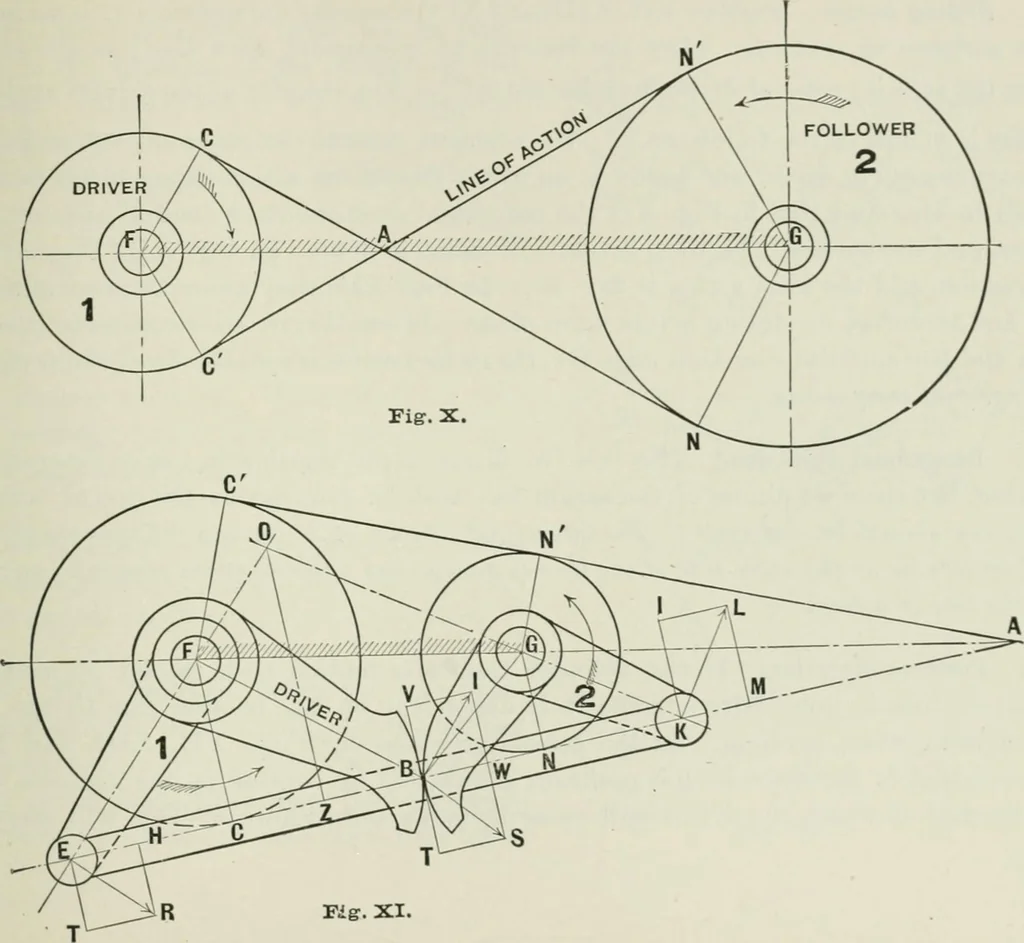

er line of link EK, the normalcomponent BW, and the line of the belt CN all coincide, and that the common normal, or lineof action, intersects the line of centers AG in the point A, thus determining the common ve- locity ratio, — = —&)„ AF Only one of these, the pulleys, will surely maintain a… … ■Fig. XI. XX INTRODUCTION. XII. Sliding Action. Figures XII, XIII, and XIV illustrate the sliding action taking placebetween surfaces of contact. They are lettered to correspond with the preceding, and in each case the velocity ratio of driver to follower is _. The velocity of the drivers at the…
Gearing
