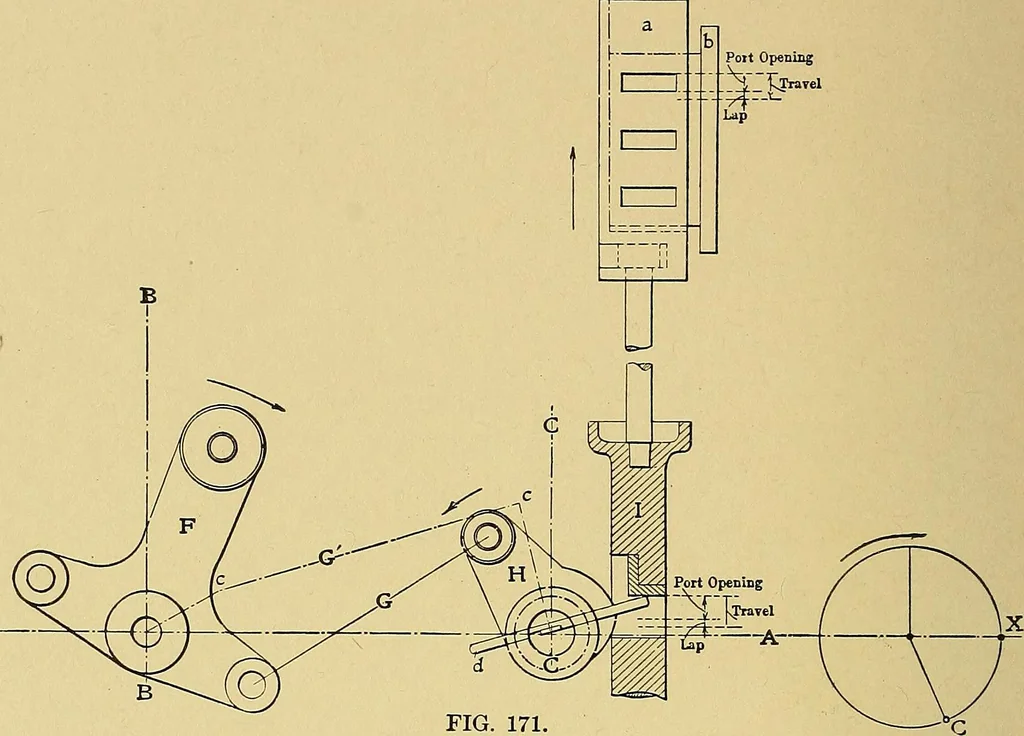

ich the plate d must lift the yoke to overcome lap and give full open-ing. The sum of the two is the valve travel. Bearing in mind that the eccentric is at X, with the wrist plate, valvecrank and valve in the positions shown, we may advance one step in themovement. In Fig. 170 the position of the… … and eccentric will now travel together. The relative positions of theexhaust pins are shown at c c. Fig. 171 shows the valve fully, opened, having reached the full height ,-^-
